ISC1812BN560J

Dale / Vishay

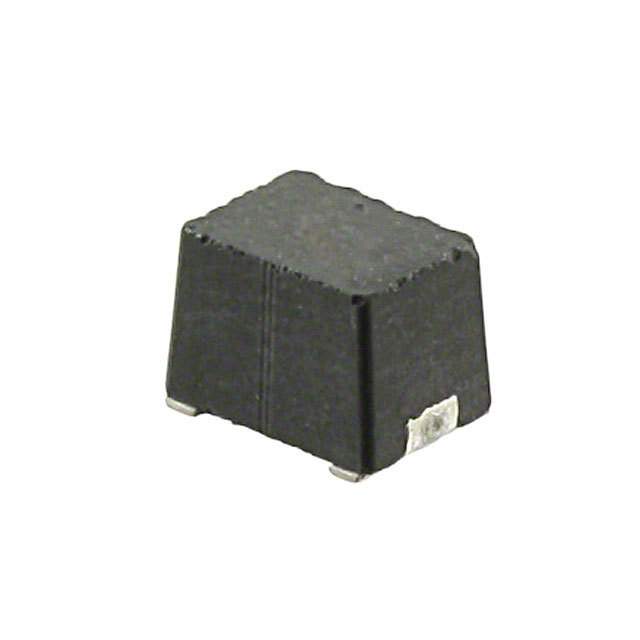

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISC1812BN560J
Manufacturer/Brand:	Dale / Vishay
Product description	FIXED IND 56UH 173MA 2.34 OHM
Datasheets:	ISC1812BN560J.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	119499 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 119499 pcs

Reference Price (In US Dollars)

500 pcs: $0.247

1000 pcs: $0.219

2500 pcs: $0.212

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.247

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISC1812BN560J

Part Number	ISC1812BN560J	Manufacturer	Dale / Vishay
Description	FIXED IND 56UH 173MA 2.34 OHM	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	119499 pcs	Data sheet	ISC1812BN560J.pdf
Type	Wirewound	Tolerance	±5%
Supplier Device Package	1812	Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Shielding	Shielded	Series	ISC-1812
Ratings	-	Q @ Freq	50 @ 2.52MHz
Packaging	Bulk	Package / Case	1812 (4532 Metric)
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance Frequency - Test	2.52MHz
Inductance	56µH	Height - Seated (Max)	0.134" (3.40mm)
Frequency - Self Resonant	8MHz	Detailed Description	56µH Shielded Wirewound Inductor 173mA 2.34 Ohm Max 1812 (4532 Metric)
DC Resistance (DCR)	2.34 Ohm Max	Current Rating	173mA
Current - Saturation	-
