KC26A9.501NLS

E-Switch

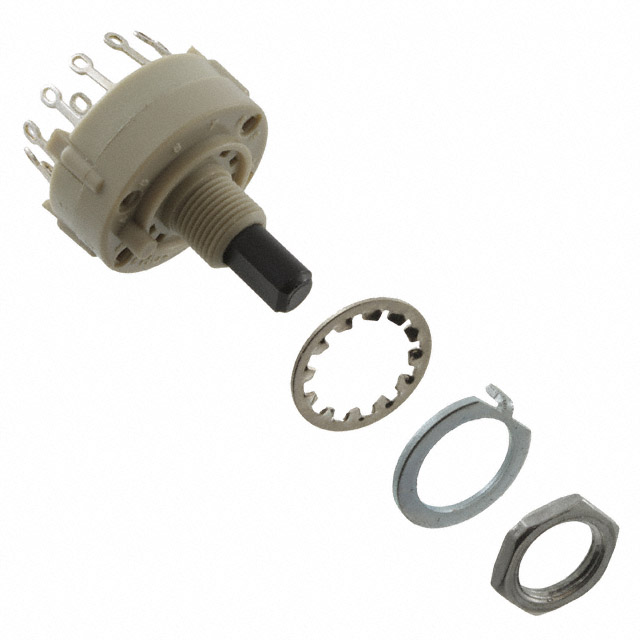

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KC26A9.501NLS
Manufacturer/Brand:	E-Switch
Product description	SWITCH ROTARY 6POS 350MA 125V
Datasheets:	1.KC26A9.501NLS.pdf 2.KC26A9.501NLS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17531 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17531 pcs

Reference Price (In US Dollars)

1 pcs: $2.128

10 pcs: $1.759

25 pcs: $1.735

50 pcs: $1.596

100 pcs: $1.527

250 pcs: $1.365

500 pcs: $1.342

1000 pcs: $1.319

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.128

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KC26A9.501NLS

Part Number	KC26A9.501NLS	Manufacturer	E-Switch
Description	SWITCH ROTARY 6POS 350MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17531 pcs	Data sheet	1.KC26A9.501NLS.pdf 2.KC26A9.501NLS.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Series	KC	Panel Cutout Dimensions	Circular - 9.80mm Dia
Other Names	G523729	Operating Force	8.770gfm
Number of Positions	6	Number of Poles per Deck	2
Number of Decks	1	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Fixed	Features	-
Detailed Description	Rotary Switch 6 Position DP6T 350mA (AC) 125VAC Panel Mount	Depth Behind Panel	18.50mm
Current Rating	350mA (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper Alloy	Contact Finish	Silver
Circuit per Deck	DP6T	Angle of Throw	30°
Actuator Type	Flatted (6.35mm Dia)	Actuator Length	9.50mm
