SIUD403ED-T1-GE3

Electro-Films (EFI) / Vishay

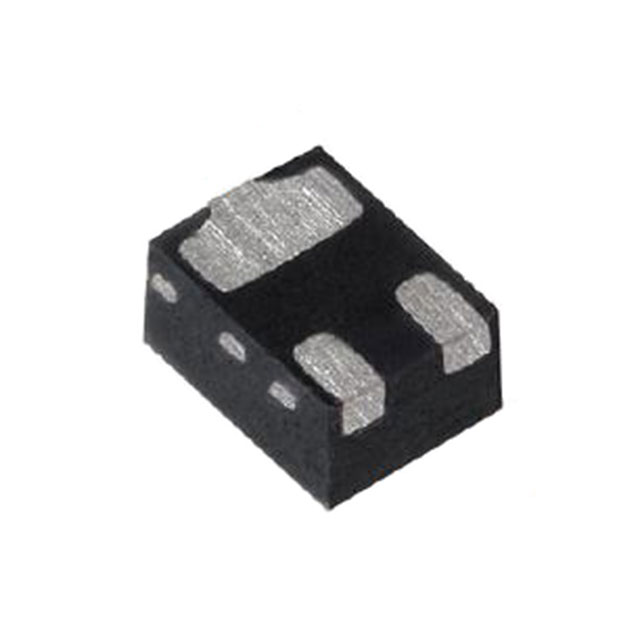

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SIUD403ED-T1-GE3
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	MOSFET P-CH 20V 500MA PWRPAK0806
Datasheets:	SIUD403ED-T1-GE3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1338616 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1338616 pcs

Reference Price (In US Dollars)

3000 pcs: $0.025

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.025

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SIUD403ED-T1-GE3

Part Number	SIUD403ED-T1-GE3	Manufacturer	Electro-Films (EFI) / Vishay
Description	MOSFET P-CH 20V 500MA PWRPAK0806	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1338616 pcs	Data sheet	SIUD403ED-T1-GE3.pdf
Vgs(th) (Max) @ Id	900mV @ 250µA	Vgs (Max)	±8V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerPAK® 0806
Series	TrenchFET® Gen III	Rds On (Max) @ Id, Vgs	1.25 Ohm @ 300mA, 4.5V
Power Dissipation (Max)	1.25W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	PowerPAK® 0806	Other Names	SIUD403ED-T1-GE3TR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	31pF @ 10V	Gate Charge (Qg) (Max) @ Vgs	1nC @ 4.5V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V	Drain to Source Voltage (Vdss)	20V
Detailed Description	P-Channel 20V 500mA (Ta) 1.25W (Ta) Surface Mount PowerPAK® 0806	Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
