76SD01T

Grayhill, Inc.

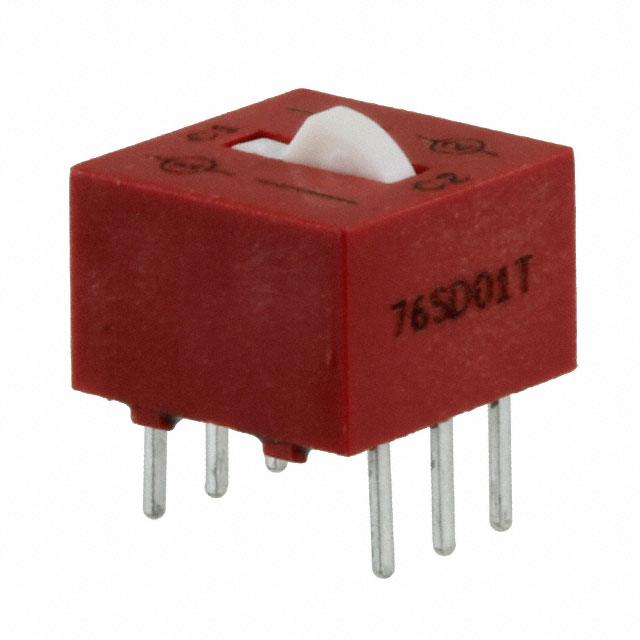

Image may be representation. See specifications for product details.

Product Overview

Part Number:	76SD01T
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH ROCKER DIP DPDT 150MA 30V
Datasheets:	76SD01T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21509 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21509 pcs

Reference Price (In US Dollars)

1 pcs: $1.609

10 pcs: $1.54

27 pcs: $1.47

54 pcs: $1.40

108 pcs: $1.26

270 pcs: $1.12

513 pcs: $1.085

1026 pcs: $0.98

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.609

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 76SD01T

Part Number	76SD01T	Manufacturer	Grayhill, Inc.
Description	SWITCH ROCKER DIP DPDT 150MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21509 pcs	Data sheet	76SD01T.pdf
Washable	No	Voltage Rating	30VDC
Termination Style	PC Pin	Series	76
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	76SD01T-ND GH7719	Operating Temperature	-40°C ~ 85°C
Number of Positions	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	2,000 Cycles
Length	0.380" (9.65mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Above Board	0.315" (8.00mm)	Features	-
Electrical Life	2,000 Cycles	Detailed Description	Dip Switch DPDT 1 Position Through Hole Rocker Actuator 150mA 30VDC
Current Rating	150mA	Contact Material	Copper Alloy
Contact Finish	Gold	Circuit	DPDT
Body Material	Thermoplastic	Actuator Type	Rocker
Actuator Level	Raised
