Harwin

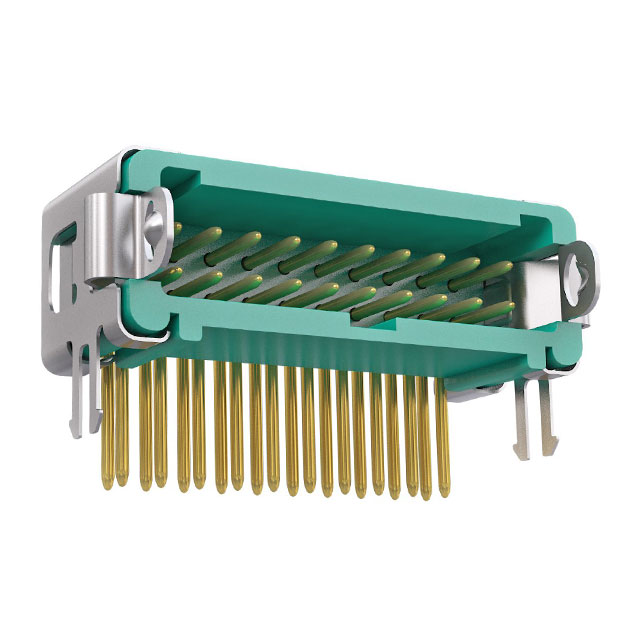

| Part Number | G125-MH12005L1P | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 1.25MM R/A PCB 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9388 pcs | Data sheet | 1.G125-MH12005L1P.pdf2.G125-MH12005L1P.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Gecko | Row Spacing - Mating | 0.049" (1.25mm) |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Strip |
| Overall Contact Length | - | Other Names | 952-2699 |
| Operating Temperature | -65°C ~ 150°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Insulation Height | 0.219" (5.56mm) | Insulation Color | Green |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.049" (1.25mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
