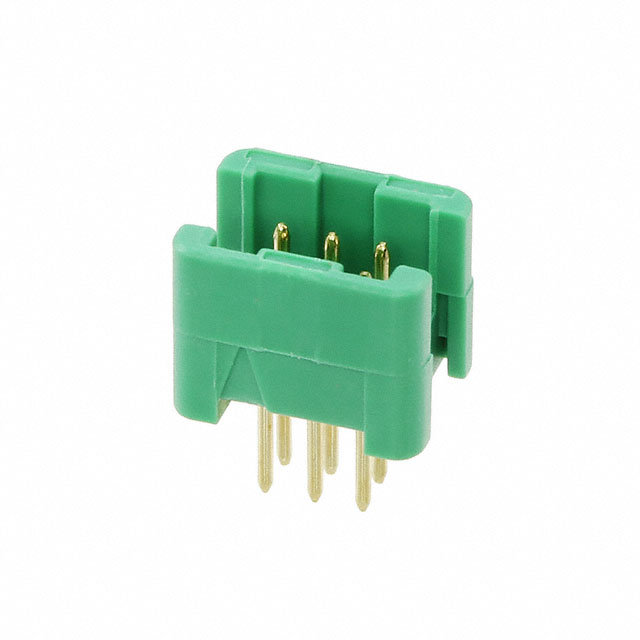

Part Number | G125-MV10605L0P | Manufacturer | Harwin |
---|---|---|---|
Description | 1.25MM M HSG 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 26310 pcs | Data sheet | 1.G125-MV10605L0P.pdf2.G125-MV10605L0P.pdf3.G125-MV10605L0P.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Gecko | Row Spacing - Mating | 0.049" (1.25mm) |
Pitch - Mating | 0.049" (1.25mm) | Packaging | Strip |
Overall Contact Length | - | Other Names | 952-2545 G125-MV10605L0P-ND |
Operating Temperature | -65°C ~ 150°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 6 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.25mm, 7.35mm, 7.7mm |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
Insulation Height | 0.193" (4.90mm) | Insulation Color | Green |
Ingress Protection | - | Features | Board Lock, Pick and Place |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.049" (1.25mm) |
Current Rating | 2A per Contact | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
Contact Finish - Post | - | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
