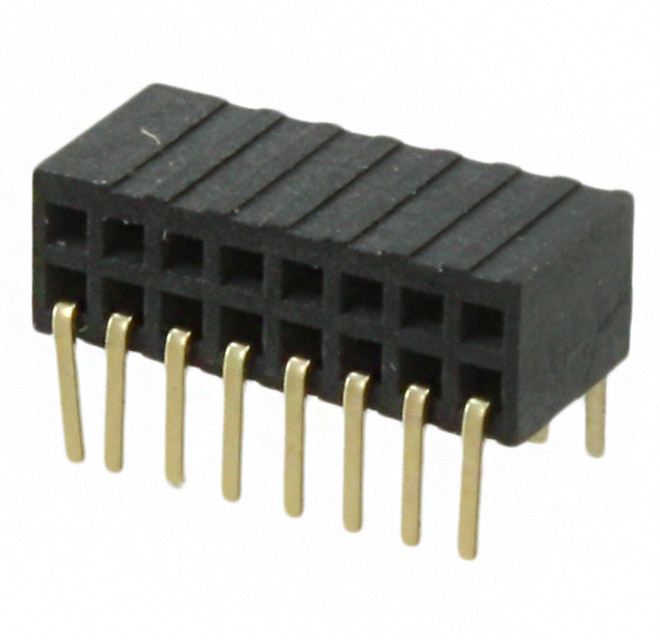

Part Number | M50-3200845 | Manufacturer | Harwin |
---|---|---|---|
Description | CONN RCPT 1.27MM T/H R/A 16POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 57836 pcs | Data sheet | 1.M50-3200845.pdf2.M50-3200845.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Series | Archer M50 |
Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
Packaging | Tube | Other Names | 952-1379-5 M503200845 |
Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 16 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
Insulation Height | 0.136" (3.46mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | 16 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold |
Current Rating | 1A | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.094" (2.40mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | General Purpose, Medical, Telecommunications |
