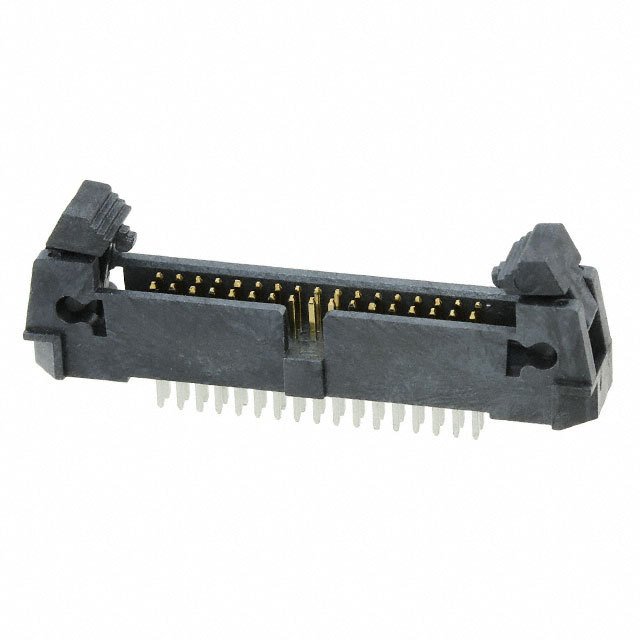

Part Number | M50-3551742 | Manufacturer | Harwin |
---|---|---|---|
Description | 1.27 IDC PCB HEADER 34 POSN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 25106 pcs | Data sheet | 1.M50-3551742.pdf2.M50-3551742.pdf3.M50-3551742.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Archer M50 | Row Spacing - Mating | 0.050" (1.27mm) |
Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
Overall Contact Length | 0.351" (8.92mm) | Other Names | 952-2621 M50-3551742-ND |
Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 34 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.6mm |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 34 position 0.050" (1.27mm) |
Current Rating | 1.75A per Contact | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | 0.120" (3.05mm) |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | Flash |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
