M80-8513442

Harwin

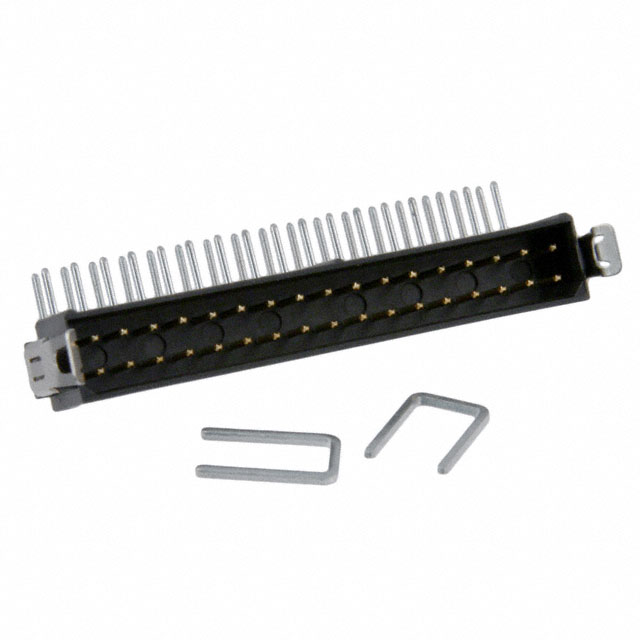

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-8513442
Manufacturer/Brand:	Harwin
Product description	CONN HDR 2MM R/A W/LATCH 34POS
Datasheets:	1.M80-8513442.pdf 2.M80-8513442.pdf 3.M80-8513442.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11600 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11600 pcs

Reference Price (In US Dollars)

1 pcs: $2.852

12 pcs: $2.728

102 pcs: $2.294

504 pcs: $1.922

1002 pcs: $1.699

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.852

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-8513442

Part Number	M80-8513442	Manufacturer	Harwin
Description	CONN HDR 2MM R/A W/LATCH 34POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11600 pcs	Data sheet	1.M80-8513442.pdf 2.M80-8513442.pdf 3.M80-8513442.pdf
Voltage Rating	800V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate L-Tek	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-1137-5 M808513442
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.235" (5.97mm)	Insulation Color	Black
Ingress Protection	-	Features	Strain Relief Clips
Fastening Type	Latch Lock	Detailed Description	Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
Current Rating	2.2A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Plug	Applications	-
