M80-8780222

Harwin

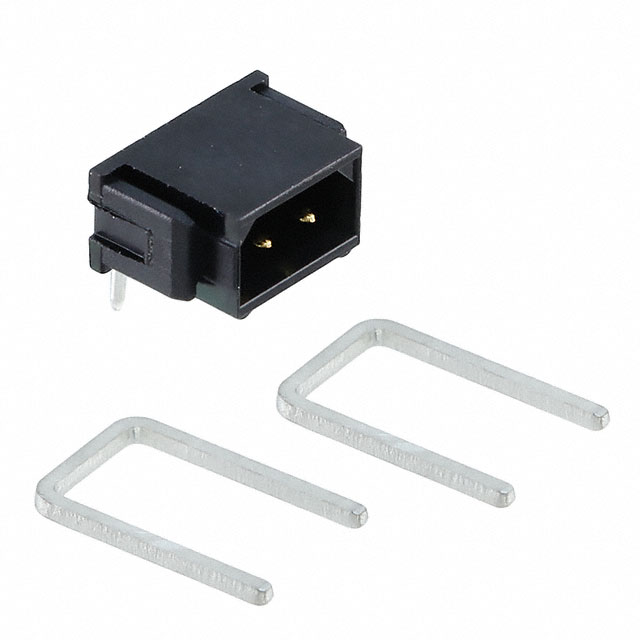

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M80-8780222
Manufacturer/Brand:	Harwin
Product description	2 SIL MALE HORIZ CONN
Datasheets:	1.M80-8780222.pdf 2.M80-8780222.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	44827 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 44827 pcs

Reference Price (In US Dollars)

1 pcs: $0.646

32 pcs: $0.549

128 pcs: $0.502

512 pcs: $0.418

1024 pcs: $0.358

5024 pcs: $0.318

10016 pcs: $0.31

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.646

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M80-8780222

Part Number	M80-8780222	Manufacturer	Harwin
Description	2 SIL MALE HORIZ CONN	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	44827 pcs	Data sheet	1.M80-8780222.pdf 2.M80-8780222.pdf
Voltage Rating	120V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Datamate L-Tek	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tube
Overall Contact Length	-	Other Names	952-2970 B5743-102-M-L-0 M80-8780222-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.156" (3.96mm)	Insulation Color	Black
Ingress Protection	-	Features	Strain Relief Clips
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole, Right Angle 2 position 0.079" (2.00mm)
Current Rating	2.2A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	118.1µin (3.00µm)	Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
