Harwin

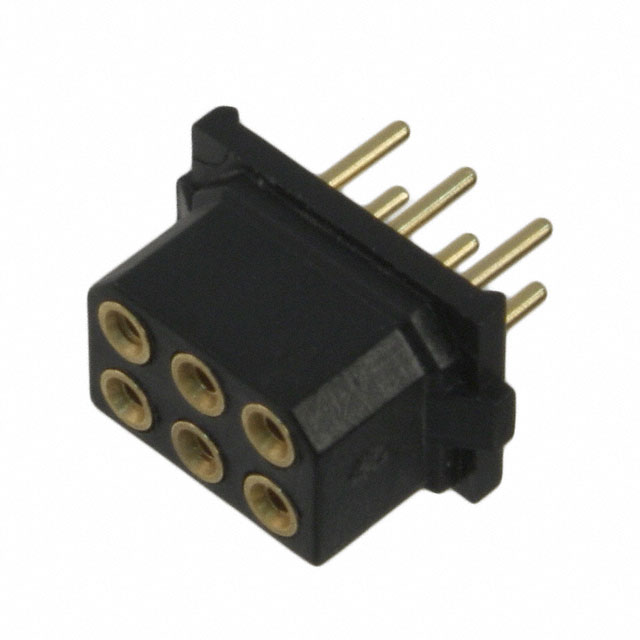

| Part Number | M80-8870601 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 3+3 DIL FEMALE VERT CONN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 27833 pcs | Data sheet | 1.M80-8870601.pdf2.M80-8870601.pdf |
| Voltage Rating | 800V | Termination | Solder |
| Style | Board to Board or Cable | Series | Datamate L-Tek |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 952-2976 B5741-206-F-T-0 M80-8870601-ND |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.23mm, 7.85mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.202" (5.14mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 137.8µin (3.50µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Military |
