Hirose

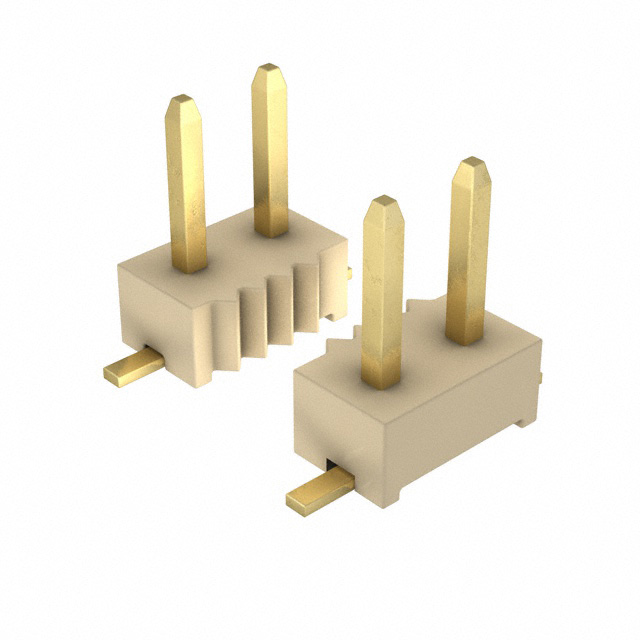

| Part Number | A3-8PA-2SV(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 8POS 2MM GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65382 pcs | Data sheet | 1.A3-8PA-2SV(71).pdf2.A3-8PA-2SV(71).pdf3.A3-8PA-2SV(71).pdf |
| Voltage Rating | 200V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | A3 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | *A3-8PA-2SV(71) A38PA2SV71 H10936 |
| Operating Temperature | -55°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 6mm, 8.8mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.071" (1.80mm) | Insulation Color | Brown |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 8 position 0.079" (2.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.138" (3.50mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
