Hirose

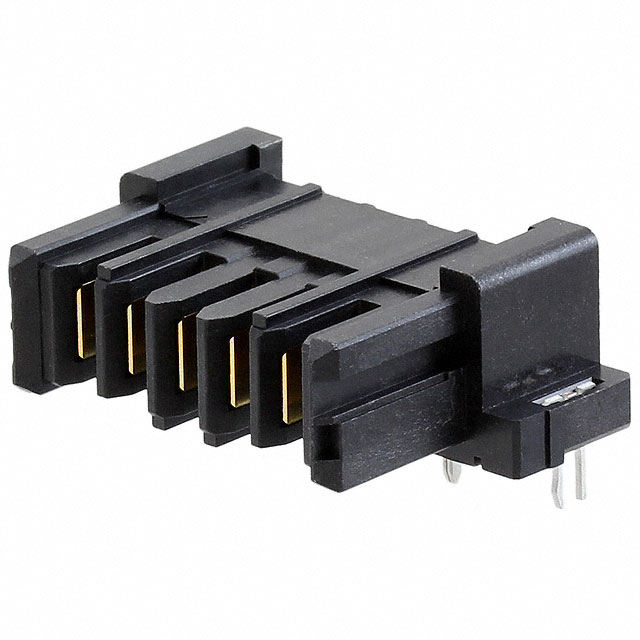

| Part Number | FX30B-5P-3.81DS | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 5POS PCB R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15251 pcs | Data sheet | 1.FX30B-5P-3.81DS.pdf2.FX30B-5P-3.81DS.pdf3.FX30B-5P-3.81DS.pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board | Shrouding | Shrouded - 2 Wall |
| Series | FunctionMax™ FX30B | Row Spacing - Mating | - |
| Pitch - Mating | 0.150" (3.81mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | H122216 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.433" (11.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 5 position 0.150" (3.81mm) |
| Current Rating | 13A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
