Hirose

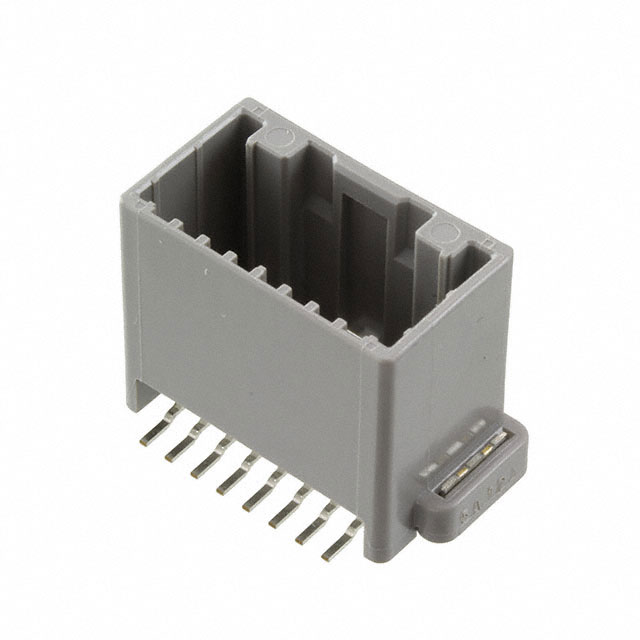

| Part Number | GT25-16DP-2.2V(01) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN 16POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63378 pcs | Data sheet | 1.GT25-16DP-2.2V(01).pdf2.GT25-16DP-2.2V(01).pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | GT25 | Row Spacing - Mating | 0.118" (3.00mm) |
| Pitch - Mating | 0.087" (2.20mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | H122651 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.740" (18.80mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 16 position 0.087" (2.20mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.055" (1.40mm) | Contact Length - Mating | 0.220" (5.59mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
