TLE7181EMXUMA1

International Rectifier (Infineon Technologies)

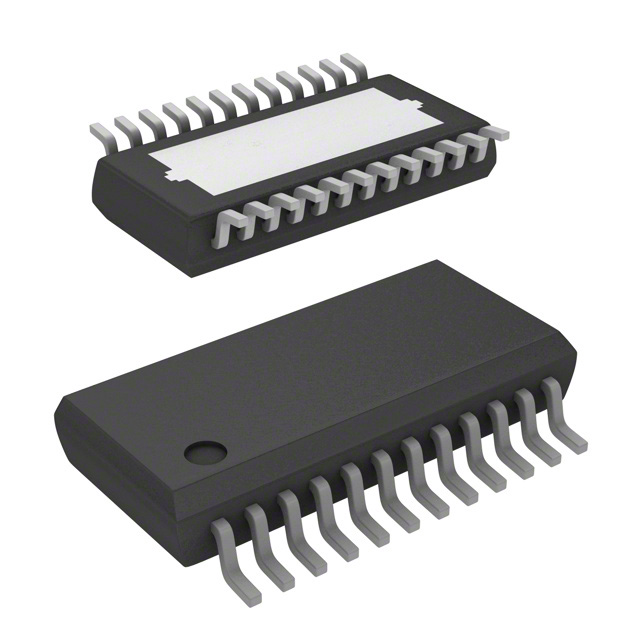

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TLE7181EMXUMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC DRIVER N-BRIDGE 24SSOP
Datasheets:	TLE7181EMXUMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	47338 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 47338 pcs

Reference Price (In US Dollars)

2500 pcs: $0.616

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.616

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TLE7181EMXUMA1

Part Number	TLE7181EMXUMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC DRIVER N-BRIDGE 24SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47338 pcs	Data sheet	TLE7181EMXUMA1.pdf
Voltage - Supply	7 V ~ 34 V	Supplier Device Package	PG-SSOP-24
Series	-	Rise / Fall Time (Typ)	250ns, 200ns
Packaging	Tape & Reel (TR)	Package / Case	24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Other Names	SP000628808 TLE7181EM TLE7181EM-ND TLE7181EMFUMA1 TLE7181EMXUMA1TR	Operating Temperature	-40°C ~ 150°C (TJ)
Number of Drivers	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Logic Voltage - VIL, VIH	1V, 2V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	55V	Gate Type	N-Channel MOSFET
Driven Configuration	Half-Bridge	Detailed Description	Half-Bridge Gate Driver IC Non-Inverting PG-SSOP-24
Current - Peak Output (Source, Sink)	-	Channel Type	Synchronous
Base Part Number	TLE7181
