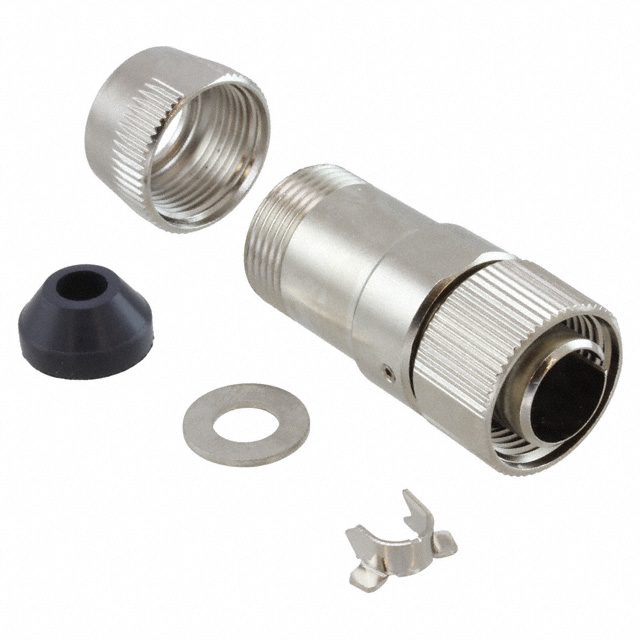

JAE Electronics, Inc.
| Part Number | JB1DB05PL5 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG HSNG MALE 5POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4216 pcs | Data sheet | 1.JB1DB05PL5.pdf2.JB1DB05PL5.pdf3.JB1DB05PL5.pdf |
| Type | For Male Pins | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | B5 |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | JB1 | Packaging | Bulk |
| Other Names | 670-2135 | Orientation | Keyed |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 5 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Synthetic Resin | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Backshell, Cable Clamp, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut | Coupling Nut Material, Plating | Zinc Alloy, Nickel |
| Coupling Nut Diameter | 0.709" (18.01mm) | Contact Type | Crimp |
| Contact Size | 22 | Contact Shape | Circular |
| Connector Type | Plug Housing |
