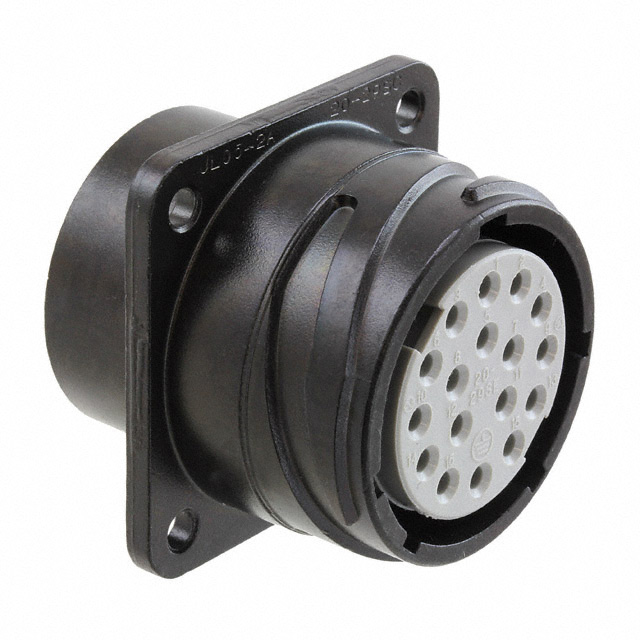

JAE Electronics
| Part Number | JL05-2A20-29SC-F0-R | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN RCPT 17POS CRIMP W/O SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7634 pcs | Data sheet | 1.JL05-2A20-29SC-F0-R.pdf2.JL05-2A20-29SC-F0-R.pdf3.JL05-2A20-29SC-F0-R.pdf |
| Wire Gauge or Range - AWG | 16 | Usage | Unshielded |
| Type Attributes | IP67 - Dust Tight, Waterproof | Type | For Female Sockets |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Aluminum Alloy |
| Series | JL05 | RoHS Status | Bulk |
| Plug/Mating Plug Diameter | Black | Other Names | 670-2017 JL05-2A20-29SC-FO-R JL052A2029SCF0R |
| Operating Temperature | -55°C ~ 125°C | Number of Positions | 17 (16 + PE) |
| Note | Contacts Not Included | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Part Number | JL05-2A20-29SC-F0-R | Large Diameter Supplied | 20-29 |
| Insert Material | - | Includes | - |
| Features | - | Expanded Description | 17 (16 + PE) Position Circular Connector Receptacle Housing Panel Mount |
| Description | CONN RCPT 17POS CRIMP W/O SOCKET | Current - Max/Contact | Bayonet Lock |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | Zinc |
| Contact Shape | Synthetic Resin | Contact Material | N (Normal) |
| Connector Type | Receptacle Housing | Body Material | Flange |
