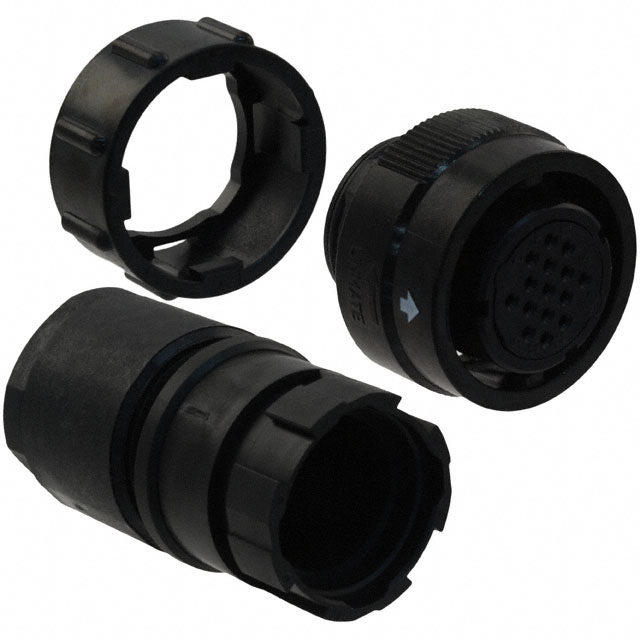

JAE Electronics
| Part Number | JN2DW15SL1 | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN PLUG 15POS #22 CRIMP SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3758 pcs | Data sheet | 1.JN2DW15SL1.pdf2.JN2DW15SL1.pdf |
| Wire Gauge or Range - AWG | 22 | Usage | Unshielded |
| Type Attributes | IP67 - Dust Tight, Waterproof | Type | For Female Sockets |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Zinc Alloy |
| Series | JN2W | RoHS Status | Bulk |
| Plug/Mating Plug Diameter | Black | Other Names | 670-2566 |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 15 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Part Number | JN2DW15SL1 | Large Diameter Supplied | W |
| Insert Material | Zinc Alloy, Zinc | Includes | - |
| Features | Backshell, Coupling Nut | Expanded Description | 15 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut |
| Description | CONN PLUG 15POS #22 CRIMP SOCKET | Current - Max/Contact | Push-Twist |
| Coupling Nut Material, Plating | 1.031" (26.19mm) | Coupling Nut Diameter | Zinc |
| Contact Shape | Synthetic Resin | Contact Material | N (Normal) |
| Connector Type | Plug Housing | Body Material | - |
