MX49004NQ1

JAE Electronics, Inc.

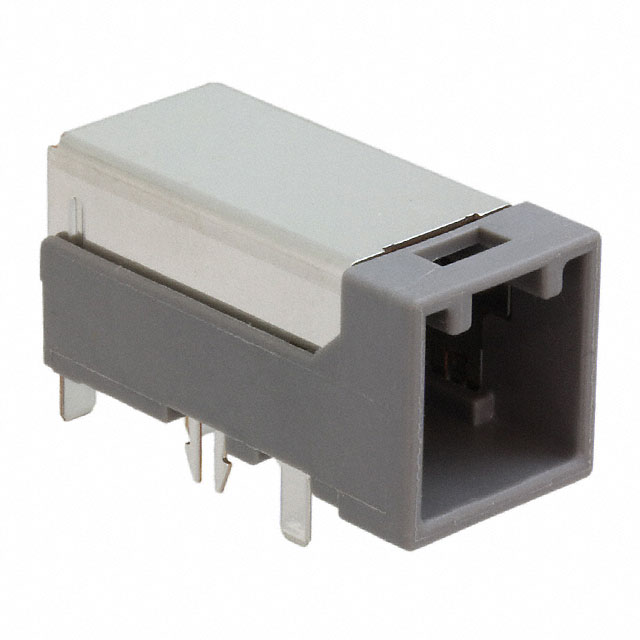

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MX49004NQ1
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RECEPT LVDS GVIF ANGLE DIP
Datasheets:	1.MX49004NQ1.pdf 2.MX49004NQ1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19427 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19427 pcs

Reference Price (In US Dollars)

1 pcs: $1.819

10 pcs: $1.745

25 pcs: $1.599

50 pcs: $1.527

100 pcs: $1.454

250 pcs: $1.272

960 pcs: $1.127

1920 pcs: $1.018

2880 pcs: $0.981

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.819

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MX49004NQ1

Part Number	MX49004NQ1	Manufacturer	JAE Electronics, Inc.
Description	CONN RECEPT LVDS GVIF ANGLE DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19427 pcs	Data sheet	1.MX49004NQ1.pdf 2.MX49004NQ1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX49	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	670-2707
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4 (2 + 1 Power + 1 Ground)
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled
Insulation Height	0.492" (12.50mm)	Insulation Color	-
Ingress Protection	-	Features	Board Guide, Board Lock, Shielded
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole, Right Angle 4 (2 + 1 Power + 1 Ground) position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.130" (3.30mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive
