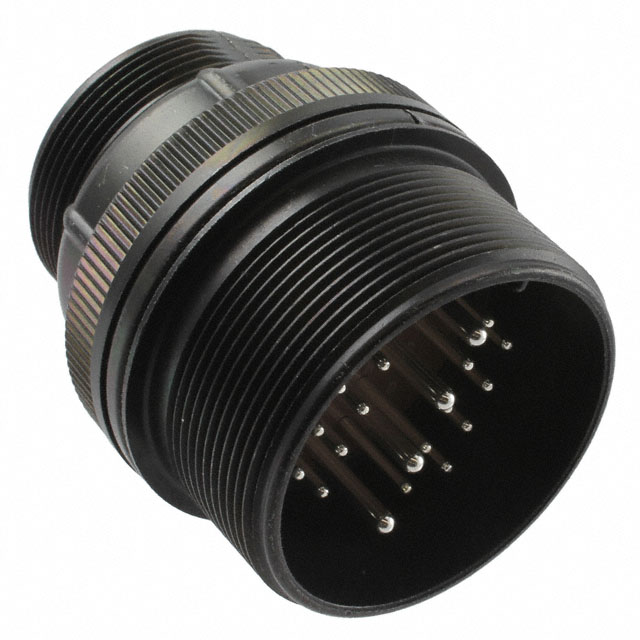

Part Number | N/MS3101B28-11P | Manufacturer | JAE Electronics, Inc. |
---|---|---|---|
Description | CONN RCPT MALE 22POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 1370 pcs | Data sheet | 1.N/MS3101B28-11P.pdf2.N/MS3101B28-11P.pdf |
Voltage Rating | 500VAC | Termination | Solder Cup |
Shielding | - | Shell Size, MIL | - |
Shell Size - Insert | 28-11 | Shell Material | Aluminum Alloy |
Shell Finish | Zinc | Series | N/MS |
Packaging | Bulk | Other Names | 670-2326 NMS3101B2811P |
Orientation | N (Normal) | Operating Temperature | -55°C ~ 125°C |
Number of Positions | 22 | Mounting Type | Free Hanging (In-Line) |
Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insert Material | Synthetic Resin | Ingress Protection | - |
Features | Backshell | Fastening Type | Threaded |
Detailed Description | 22 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 13A, 23A |
Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
Color | Black | Cable Opening | - |
Backshell Material, Plating | Aluminum Alloy, Zinc | Applications | - |
