JST

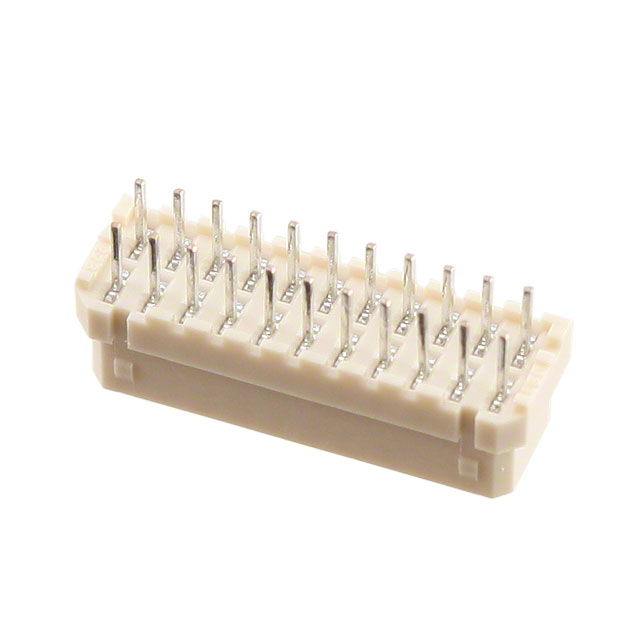

| Part Number | 22R-JED(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN RECEPT 22POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72298 pcs | Data sheet | 22R-JED(LF)(SN).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Board | Series | JED |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Bulk | Other Names | 22R-JED(LF)(SN)-ND 455-2940 Q4490391 T0873783 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 22 Position Receptacle Connector 0.049" (1.25mm) Through Hole Tin |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.079" (2.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
