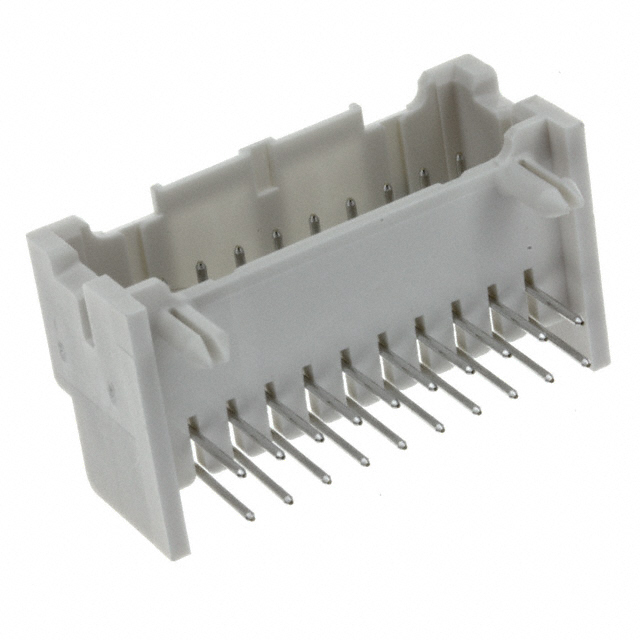

Part Number | S20B-XADSS-N(LF)(SN) | Manufacturer | JST |
---|---|---|---|
Description | CONN HDR XAD 20POS 2.5MM TIN SE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 46912 pcs | Data sheet | S20B-XADSS-N(LF)(SN).pdf |
Voltage Rating | 250V | Termination | Solder |
Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
Series | XAD | Row Spacing - Mating | 0.098" (2.50mm) |
Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 455-2035 S20BXADSSNLFSN |
Operating Temperature | -25°C ~ 85°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 20 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
Insulation Height | 0.476" (12.10mm) | Insulation Color | Natural |
Ingress Protection | - | Features | - |
Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.098" (2.50mm) |
Current Rating | 3A | Contact Type | Male Pin |
Contact Shape | Circular | Contact Material | Copper Alloy |
Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header | Applications | - |
