SC-05-800

KEMET

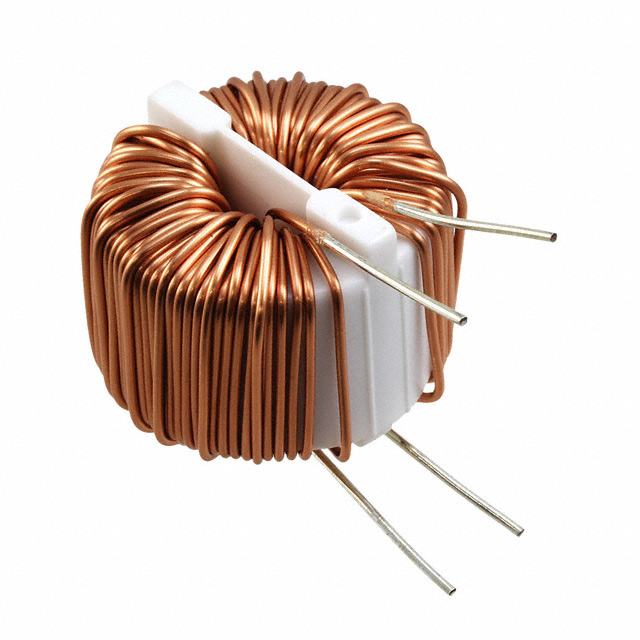

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SC-05-800
Manufacturer/Brand:	KEMET
Product description	COMMON MODE CHOKE 8MH 4A 2LN TH
Datasheets:	SC-05-800.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33689 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33689 pcs

Reference Price (In US Dollars)

1 pcs: $0.896

10 pcs: $0.716

25 pcs: $0.581

50 pcs: $0.567

100 pcs: $0.552

250 pcs: $0.537

500 pcs: $0.532

1000 pcs: $0.471

5000 pcs: $0.432

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.896

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SC-05-800

Part Number	SC-05-800	Manufacturer	KEMET
Description	COMMON MODE CHOKE 8MH 4A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33689 pcs	Data sheet	SC-05-800.pdf
Voltage Rating - DC	250V	Voltage Rating - AC	250V
Size / Dimension	1.339" Dia x 0.906" W (34.00mm x 23.00mm)	Series	SC
Ratings	-	Packaging	Bulk
Package / Case	Vertical, No Base, 4 PC Pin	Other Names	399-10613
Operating Temperature	-25°C ~ 105°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	8mH @ 100kHz
Height (Max)	1.339" (34.00mm)	Filter Type	Power Line
Features	-	Detailed Description	8mH @ 100kHz 2 Line Common Mode Choke Through Hole 4A DCR 85 mOhm
DC Resistance (DCR) (Max)	85 mOhm	Current Rating (Max)	4A
Approvals	-
