Keystone Electronics Corp.

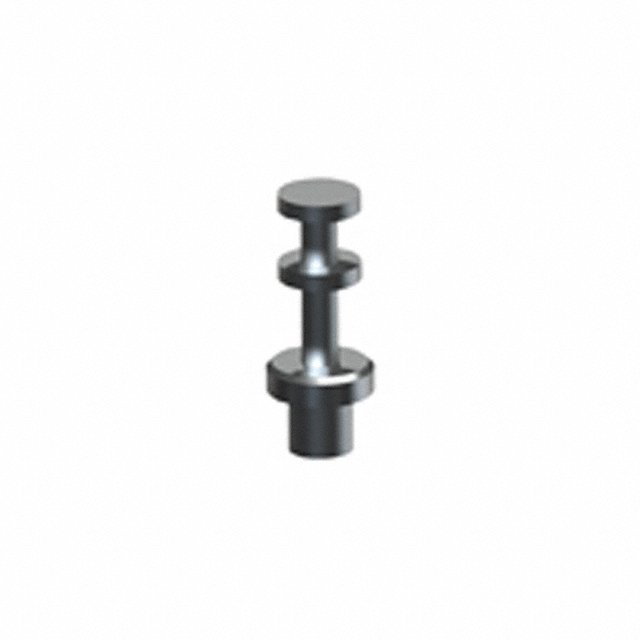

| Part Number | 1503-3 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=9.14MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121469 pcs | Data sheet | 1.1503-3.pdf2.1503-3.pdf |
| Termination | Staking Flare | Terminal Type | Single End |
| Staking Side OD | 0.112" (2.84mm) | Staking Side ID | - |
| Series | - | Other Names | 1503-3K 1503-3K-ND 36-1503-3 |
| Number of Turrets | Double | Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.116" (2.95mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Length - Overall | 0.501" (12.73mm) |
| Length - Below Flange | 0.141" (3.58mm) | Length - Above Board | 0.360" (9.14mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.145" (3.68mm) | Detailed Description | Terminal Turret Connector Single End 0.360" (9.14mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.093" (2.36mm) |
