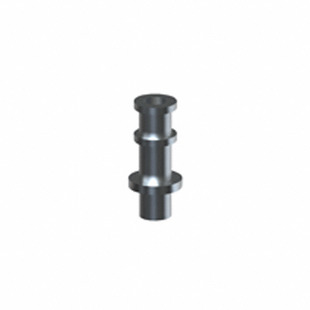

Part Number | 1509-3 | Manufacturer | Keystone Electronics Corp. |
---|---|---|---|
Description | TERM TURRET HOLLOW L=7.92MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 122685 pcs | Data sheet | 1.1509-3.pdf2.1509-3.pdf |
Termination | Staking Flare | Terminal Type | Single End, Hollow |
Staking Side OD | 0.112" (2.84mm) | Staking Side ID | - |
Series | - | Other Names | 1509-3K 1509-3K-ND 36-1509-3 |
Number of Turrets | Double | Mounting Type | Through Hole |
Mounting Hole Diameter | 0.116" (2.95mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Insulation | - | Length - Overall | 0.452" (11.48mm) |
Length - Below Flange | 0.140" (3.56mm) | Length - Above Board | 0.312" (7.92mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
Insulation | Non-Insulated | Flange Diameter | 0.187" (4.75mm) |
Diameter - Turret Head | 0.150" (3.81mm) | Detailed Description | Terminal Turret Connector Single End, Hollow 0.312" (7.92mm) Tin |
Contact Material | Brass | Contact Finish Thickness | - |
Contact Finish | Tin | Board Thickness | 0.093" (2.36mm) |
