DTC114TCAT116

LAPIS Semiconductor

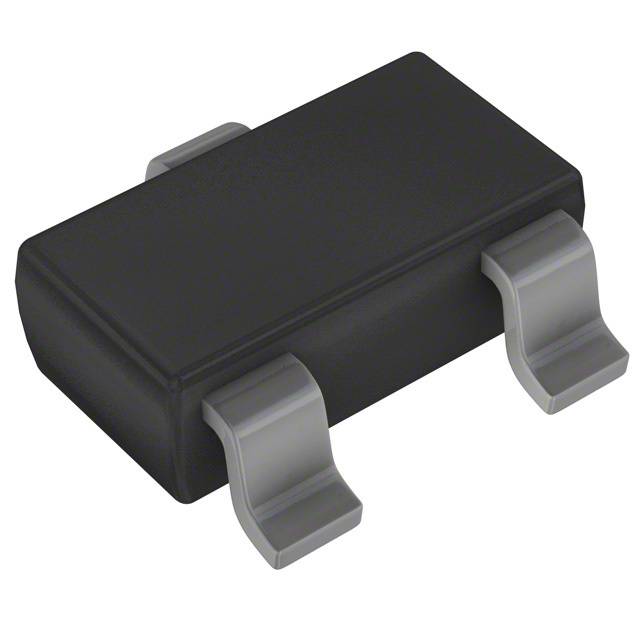

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DTC114TCAT116
Manufacturer/Brand:	LAPIS Semiconductor
Product description	NPN 100MA 50V DIGITAL TRANSISTOR
Datasheets:	1.DTC114TCAT116.pdf 2.DTC114TCAT116.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1945555 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1945555 pcs

Reference Price (In US Dollars)

3000 pcs: $0.015

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.015

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DTC114TCAT116

Part Number	DTC114TCAT116	Manufacturer	LAPIS Semiconductor
Description	NPN 100MA 50V DIGITAL TRANSISTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1945555 pcs	Data sheet	1.DTC114TCAT116.pdf 2.DTC114TCAT116.pdf
Voltage - Collector Emitter Breakdown (Max)	50V	Vce Saturation (Max) @ Ib, Ic	300mV @ 1mA, 10mA
Transistor Type	NPN - Pre-Biased	Supplier Device Package	SST3
Series	*	Resistor - Base (R1)	10 kOhms
Power - Max	200mW	Packaging	Tape & Reel (TR)
Package / Case	TO-236-3, SC-59, SOT-23-3	Other Names	DTC114TCAMGT116 DTC114TCAT116TR
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	250MHz
Detailed Description	Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 250MHz 200mW Surface Mount SST3	DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1mA, 5V
Current - Collector Cutoff (Max)	500nA (ICBO)	Current - Collector (Ic) (Max)	100mA
