RGS00TS65DHRC11

LAPIS Semiconductor

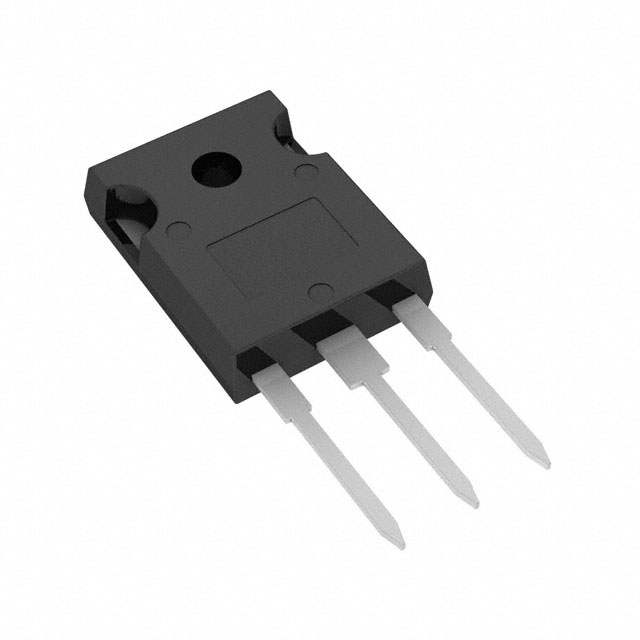

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RGS00TS65DHRC11
Manufacturer/Brand:	LAPIS Semiconductor
Product description	ROHM'S IGBT PRODUCTS WILL CONTRI
Datasheets:	1.RGS00TS65DHRC11.pdf 2.RGS00TS65DHRC11.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17254 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17254 pcs

Reference Price (In US Dollars)

1 pcs: $1.682

10 pcs: $1.503

25 pcs: $1.352

100 pcs: $1.232

250 pcs: $1.112

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.682

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RGS00TS65DHRC11

Part Number	RGS00TS65DHRC11	Manufacturer	LAPIS Semiconductor
Description	ROHM'S IGBT PRODUCTS WILL CONTRI	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17254 pcs	Data sheet	1.RGS00TS65DHRC11.pdf 2.RGS00TS65DHRC11.pdf
Voltage - Collector Emitter Breakdown (Max)	650V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 50A
Test Condition	400V, 50A, 10 Ohm, 15V	Td (on/off) @ 25°C	36ns/115ns
Switching Energy	1.46mJ (on), 1.29mJ (off)	Supplier Device Package	TO-247N
Series	Automotive, AEC-Q101	Reverse Recovery Time (trr)	103ns
Power - Max	326W	Package / Case	TO-247-3
Operating Temperature	-40°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Standard	IGBT Type	Trench Field Stop
Gate Charge	58nC	Detailed Description	IGBT Trench Field Stop 650V 88A 326W Through Hole TO-247N
Current - Collector Pulsed (Icm)	150A	Current - Collector (Ic) (Max)	88A
