RZR040P01TL

LAPIS Semiconductor

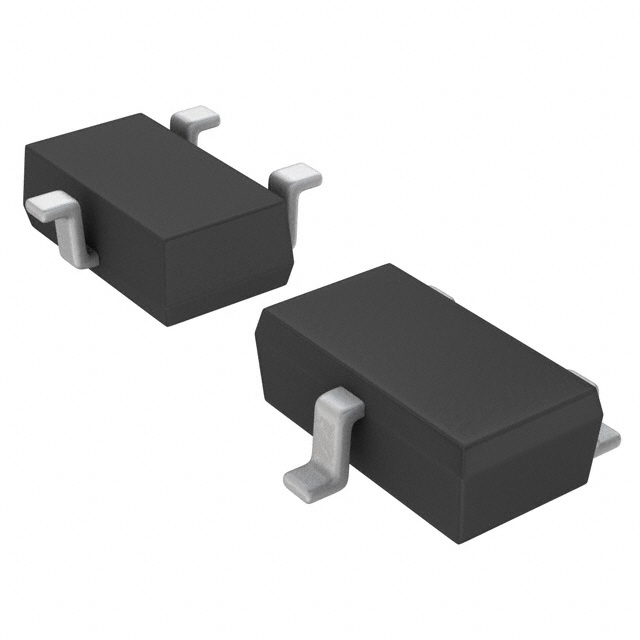

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RZR040P01TL
Manufacturer/Brand:	LAPIS Semiconductor
Product description	MOSFET P-CH 12V 4A TSMT3
Datasheets:	RZR040P01TL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128548 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 128548 pcs

Reference Price (In US Dollars)

1 pcs: $0.277

10 pcs: $0.242

100 pcs: $0.186

500 pcs: $0.138

1000 pcs: $0.11

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.277

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RZR040P01TL

Part Number	RZR040P01TL	Manufacturer	LAPIS Semiconductor
Description	MOSFET P-CH 12V 4A TSMT3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128548 pcs	Data sheet	RZR040P01TL.pdf
Vgs(th) (Max) @ Id	1V @ 1mA	Vgs (Max)	±10V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	TSMT3
Series	-	Rds On (Max) @ Id, Vgs	30 mOhm @ 4A, 4.5V
Power Dissipation (Max)	1W (Ta)	Packaging	Cut Tape (CT)
Package / Case	SC-96	Other Names	RZR040P01MGTL RZR040P01TLCT
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	2350pF @ 6V	Gate Charge (Qg) (Max) @ Vgs	30nC @ 4.5V
FET Type	P-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V	Drain to Source Voltage (Vdss)	12V
Detailed Description	P-Channel 12V 4A (Ta) 1W (Ta) Surface Mount TSMT3	Current - Continuous Drain (Id) @ 25°C	4A (Ta)
