LTM-8522HR

Lite-On, Inc.

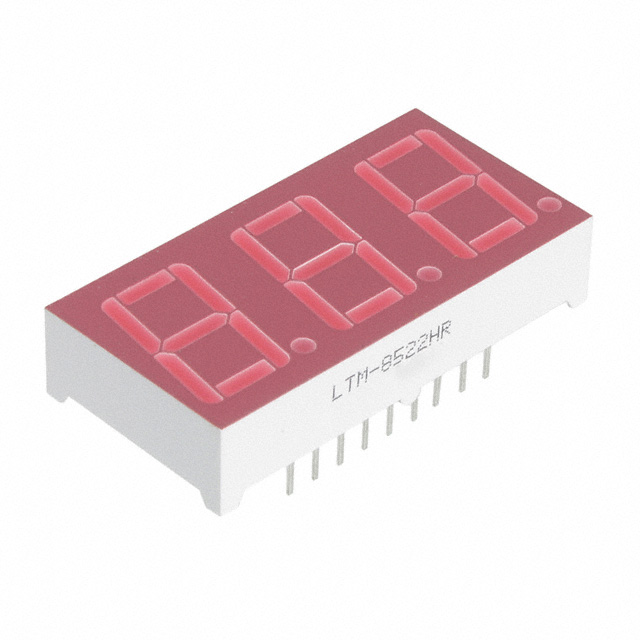

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LTM-8522HR
Manufacturer/Brand:	Lite-On, Inc.
Product description	LED 7-SEG .56" 3DIGIT HI-EFF RED
Datasheets:	LTM-8522HR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	9879 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 9879 pcs

Reference Price (In US Dollars)

1 pcs: $3.491

13 pcs: $3.161

26 pcs: $2.502

104 pcs: $2.107

260 pcs: $1.976

507 pcs: $1.811

1001 pcs: $1.712

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.491

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LTM-8522HR

Part Number	LTM-8522HR	Manufacturer	Lite-On, Inc.
Description	LED 7-SEG .56" 3DIGIT HI-EFF RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	9879 pcs	Data sheet	LTM-8522HR.pdf
Wavelength - Peak	635nm	Voltage - Forward (Vf) (Typ)	-
Size / Dimension	0.750" H x 1.484" W x 0.315" D (19.05mm x 37.70mm x 8.00mm)	Series	-
Power Dissipation (Max)	335mW	Packaging	Tube
Package / Case	18-DIP (0.600", 15.24mm)	Other Names	160-1980-5 LTM-8522HR-ND LTM8522HR
Number of Characters	3	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Millicandela Rating	2.4mcd	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Display Type	7-Segment	Digit/Alpha Size	0.56" (14.22mm)
Detailed Description	Character LED Display Module Red 7-Segment 3 Character Serial Input 0.4mA 0.750" H x 1.484" W x 0.315" D (19.05mm x 37.70mm x 8.00mm) 18-DIP (0.600", 15.24mm)	Current - Test	0.4mA
Common Pin	Serial Input	Color	Red
