APTGFQ25H120T2G

Microsemi

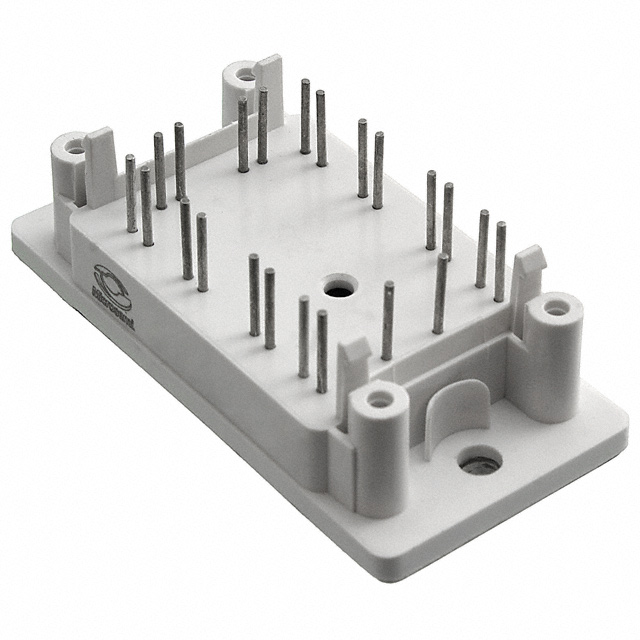

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGFQ25H120T2G
Manufacturer/Brand:	Microsemi
Product description	IGBT 1200V 40A 227W MODULE
Datasheets:	1.APTGFQ25H120T2G.pdf 2.APTGFQ25H120T2G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1607 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1607 pcs

Reference Price (In US Dollars)

1 pcs: $20.877

10 pcs: $19.649

25 pcs: $18.421

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$20.877

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGFQ25H120T2G

Part Number	APTGFQ25H120T2G	Manufacturer	Microsemi
Description	IGBT 1200V 40A 227W MODULE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1607 pcs	Data sheet	1.APTGFQ25H120T2G.pdf 2.APTGFQ25H120T2G.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 25A
Supplier Device Package	SP2	Series	-
Power - Max	227W	Package / Case	SP2
Operating Temperature	-	NTC Thermistor	Yes
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	2.02nF @ 25V
Input	Standard	IGBT Type	NPT and Fieldstop
Detailed Description	IGBT Module NPT and Fieldstop Full Bridge 1200V 40A 227W Through Hole SP2	Current - Collector Cutoff (Max)	250µA
Current - Collector (Ic) (Max)	40A	Configuration	Full Bridge
