APTGT75TA120PG

Microsemi

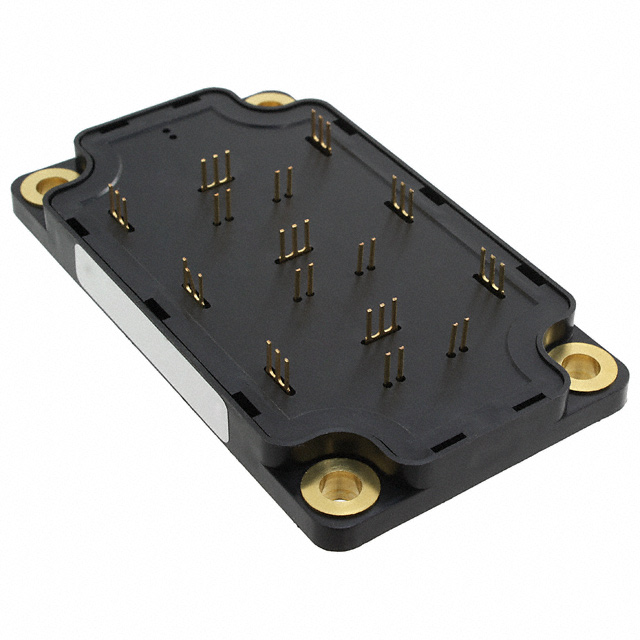

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APTGT75TA120PG
Manufacturer/Brand:	Microsemi
Product description	POWER MOD IGBT 3PHASE LEG SP6
Datasheets:	APTGT75TA120PG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	784 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 784 pcs

Reference Price (In US Dollars)

100 pcs: $41.295

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$41.295

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APTGT75TA120PG

Part Number	APTGT75TA120PG	Manufacturer	Microsemi
Description	POWER MOD IGBT 3PHASE LEG SP6	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	784 pcs	Data sheet	APTGT75TA120PG.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 75A
Supplier Device Package	SP6-P	Series	-
Power - Max	350W	Package / Case	SP6
Operating Temperature	-40°C ~ 150°C (TJ)	NTC Thermistor	No
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	5.34nF @ 25V
Input	Standard	IGBT Type	Trench Field Stop
Detailed Description	IGBT Module Trench Field Stop Three Phase 1200V 100A 350W Chassis Mount SP6-P	Current - Collector Cutoff (Max)	250µA
Current - Collector (Ic) (Max)	100A	Configuration	Three Phase
