SG7815T-883B

Microsemi

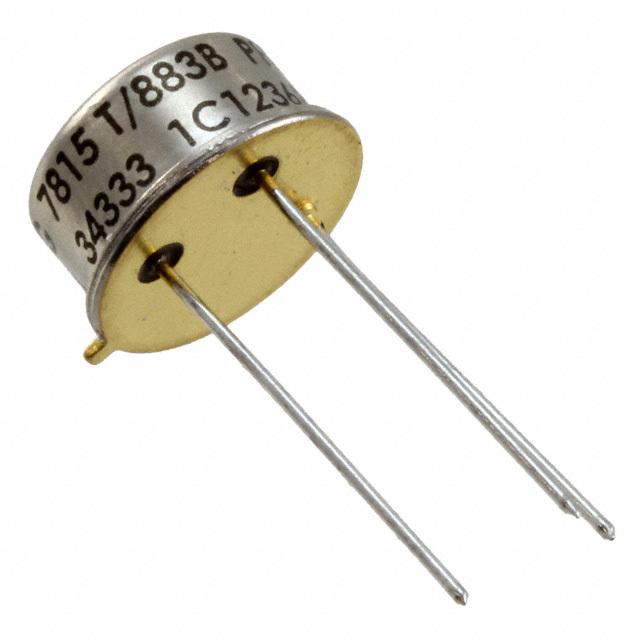

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SG7815T-883B
Manufacturer/Brand:	Microsemi
Product description	IC REG LINEAR 15V 500MA TO39
Datasheets:	SG7815T-883B.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	2236 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2236 pcs

Reference Price (In US Dollars)

1 pcs: $14.295

10 pcs: $13.367

25 pcs: $12.363

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$14.295

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SG7815T-883B

Part Number	SG7815T-883B	Manufacturer	Microsemi
Description	IC REG LINEAR 15V 500MA TO39	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2236 pcs	Data sheet	SG7815T-883B.pdf
Voltage Dropout (Max)	2.5V @ 500mA	Voltage - Output (Min/Fixed)	15V
Voltage - Output (Max)	-	Voltage - Input (Max)	35V
Supplier Device Package	TO-39	Series	Military, MIL-STD-883
Protection Features	Over Current, Over Temperature	Packaging	Bulk
Package / Case	TO-39-3 Lens Top Metal Can	PSRR	60dB (120Hz)
Output Type	Fixed	Output Configuration	Positive
Other Names	1259-1130 1259-1130-MIL	Operating Temperature	-55°C ~ 125°C
Number of Regulators	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 15V 500mA TO-39	Current - Quiescent (Iq)	7mA
Current - Output	500mA	Control Features	-
Base Part Number	SG7815
