22R223C

Murata Power Solutions

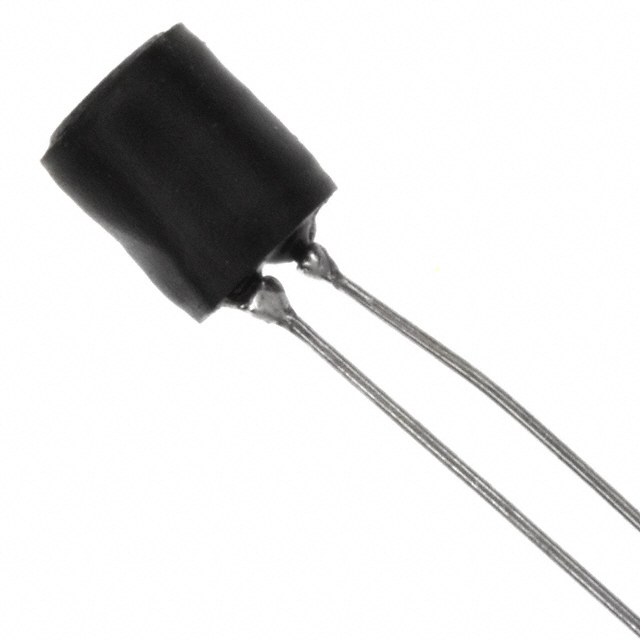

Image may be representation. See specifications for product details.

Product Overview

Part Number:	22R223C
Manufacturer/Brand:	Murata Power Solutions
Product description	FIXED IND 22UH 1.08A 90 MOHM TH
Datasheets:	22R223C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	167337 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 167337 pcs

Reference Price (In US Dollars)

1 pcs: $0.207

25 pcs: $0.204

50 pcs: $0.197

100 pcs: $0.19

250 pcs: $0.176

500 pcs: $0.163

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.207

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 22R223C

Part Number	22R223C	Manufacturer	Murata Power Solutions
Description	FIXED IND 22UH 1.08A 90 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	167337 pcs	Data sheet	22R223C.pdf
Type	Wirewound	Tolerance	±10%
Supplier Device Package	-	Size / Dimension	0.256" Dia (6.50mm)
Shielding	Unshielded	Series	2200R
Ratings	-	Q @ Freq	50 @ 500kHz
Packaging	Bulk	Package / Case	Radial
Other Names	811-1301	Operating Temperature	-25°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	1kHz	Inductance	22µH
Height - Seated (Max)	0.413" (10.50mm)	Frequency - Self Resonant	17MHz
Detailed Description	22µH Unshielded Wirewound Inductor 1.08A 90 mOhm Max Radial	DC Resistance (DCR)	90 mOhm Max
Current Rating	1.08A	Current - Saturation	-
