G23AV

NKK Switches

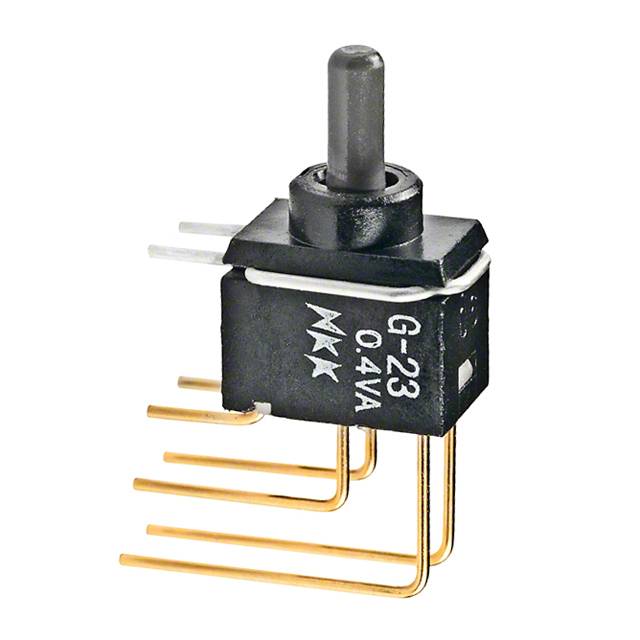

Image may be representation. See specifications for product details.

Product Overview

Part Number:	G23AV
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE DPDT 0.4VA 28V
Datasheets:	G23AV.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15041 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15041 pcs

Reference Price (In US Dollars)

1 pcs: $2.164

10 pcs: $2.055

25 pcs: $2.001

50 pcs: $1.947

100 pcs: $1.893

250 pcs: $1.785

500 pcs: $1.514

1000 pcs: $1.433

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.164

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of G23AV

Part Number	G23AV	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15041 pcs	Data sheet	G23AV.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	28V
Termination Style	PC Pin	Switch Function	On-Off-On
Series	G	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	360-3385 G23AV-ND G23AV-RO G23AV-RO-ND
Operating Temperature	-25°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	100,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole, Right Angle, Vertical	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length	3.80mm
