HS13X

NKK Switches

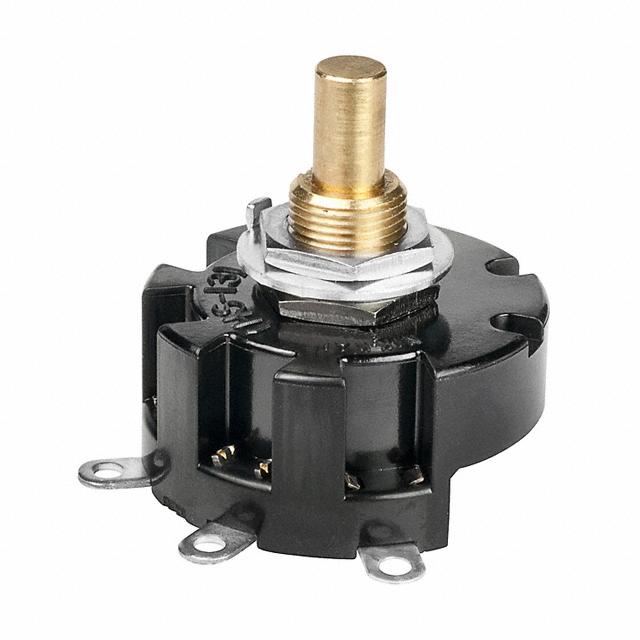

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HS13X
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROTARY 2POS 6A 125V
Datasheets:	HS13X.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14074 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 14074 pcs

Reference Price (In US Dollars)

1 pcs: $2.648

10 pcs: $2.189

25 pcs: $2.16

50 pcs: $1.987

100 pcs: $1.901

250 pcs: $1.699

500 pcs: $1.67

1000 pcs: $1.642

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.648

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HS13X

Part Number	HS13X	Manufacturer	NKK Switches
Description	SWITCH ROTARY 2POS 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14074 pcs	Data sheet	HS13X.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Series	HS
Panel Cutout Dimensions	Circular - 10.30mm Dia	Other Names	360-2808 HS13X-ND HS13X-RO HS13X-RO-ND
Operating Force	15 ~ 24gfm	Number of Positions	2
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Index Stops	Fixed
Features	-	Detailed Description	Rotary Switch 2 Position SPDT 6A (AC), 5A (DC) 125VAC Panel Mount
Depth Behind Panel	20.00mm	Current Rating	6A (AC), 5A (DC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Phosphor Bronze
Contact Finish	-	Circuit per Deck	SPDT
Angle of Throw	45°	Actuator Type	Round (6mm Dia)
Actuator Length	10.00mm
