HS16-4SN

NKK Switches

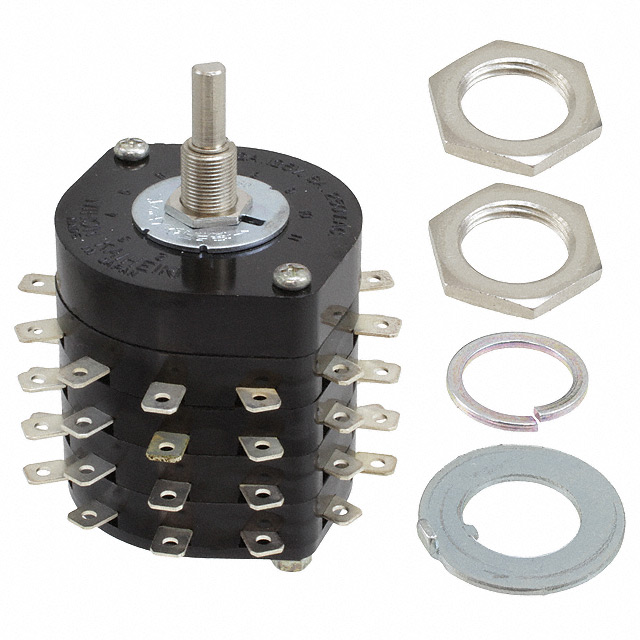

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HS16-4SN
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROTARY 2-11POS 12A 125V
Datasheets:	HS16-4SN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1594 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1594 pcs

Reference Price (In US Dollars)

1 pcs: $20.051

10 pcs: $19.46

25 pcs: $18.87

50 pcs: $17.691

100 pcs: $16.512

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$20.051

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HS16-4SN

Part Number	HS16-4SN	Manufacturer	NKK Switches
Description	SWITCH ROTARY 2-11POS 12A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1594 pcs	Data sheet	HS16-4SN.pdf
Voltage Rating - AC	125V	Termination Style	Solder Lug
Series	HS	Panel Cutout Dimensions	Circular - 10.30mm Dia
Other Names	360-3043 HS16-4SN-ND	Operating Force	70 ~ 81gfm
Number of Positions	2 ~ 11	Number of Poles per Deck	1
Number of Decks	4	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Adjustable	Features	-
Detailed Description	Rotary Switch 2 ~ 11 Position SP11T 12A (AC) 125VAC Panel Mount	Depth Behind Panel	61.50mm
Current Rating	12A (AC)	Contact Timing	Shorting (MBB)
Contact Material	Phosphor Bronze	Contact Finish	-
Circuit per Deck	SP11T	Angle of Throw	30°
Actuator Type	Flatted (6mm Dia)	Actuator Length	15.00mm
