JB15HLPC

NKK Switches

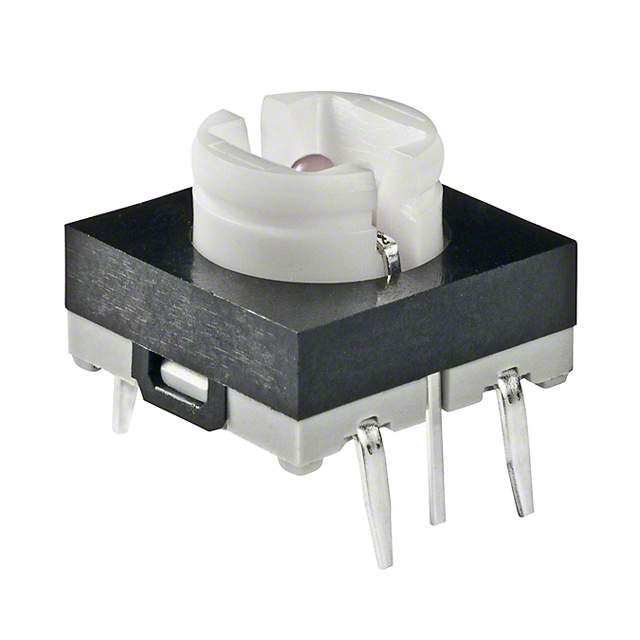

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JB15HLPC
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACT SPST-NO 0.125A 24V
Datasheets:	JB15HLPC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24758 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 24758 pcs

Reference Price (In US Dollars)

1 pcs: $1.349

10 pcs: $1.285

25 pcs: $1.221

50 pcs: $1.189

100 pcs: $1.093

300 pcs: $1.028

500 pcs: $0.932

1000 pcs: $0.884

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.349

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JB15HLPC

Part Number	JB15HLPC	Manufacturer	NKK Switches
Description	SWITCH TACT SPST-NO 0.125A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24758 pcs	Data sheet	JB15HLPC.pdf
Termination Style	PC Pin	Switch Travel	0.30mm
Switch Function	Off-Mom	Series	JB
Packaging	Bulk	Outline	10.00mm x 10.00mm
Operating Temperature	-25°C ~ 70°C	Operating Force	265gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.8 VDC
Illumination Type, Color	LED, Red	Illumination	Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.125A @ 24VDC	Circuit	SPST-NO
Actuator Type	Plunger for Cap	Actuator Orientation	Top Actuated
Actuator Material	-	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	-
