JF15RP3CC

NKK Switches

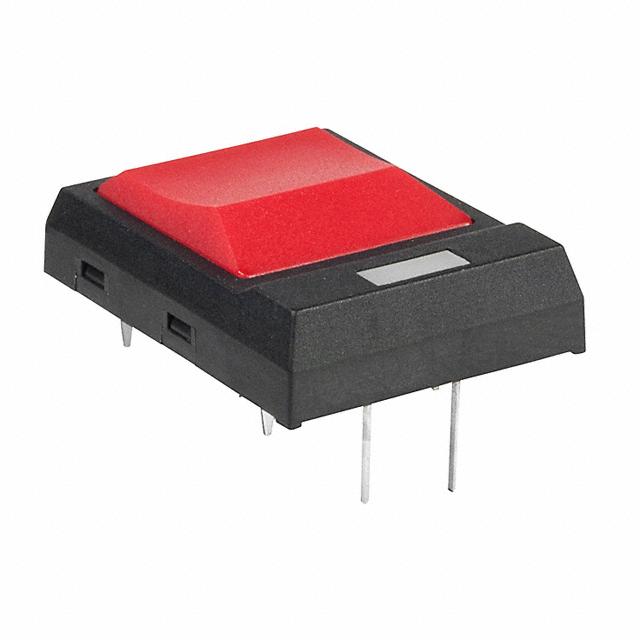

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JF15RP3CC
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JF15RP3CC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22898 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22898 pcs

Reference Price (In US Dollars)

1 pcs: $1.535

10 pcs: $1.461

25 pcs: $1.388

50 pcs: $1.351

100 pcs: $1.242

250 pcs: $1.169

500 pcs: $1.059

1000 pcs: $1.004

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.535

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JF15RP3CC

Part Number	JF15RP3CC	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22898 pcs	Data sheet	JF15RP3CC.pdf
Termination Style	PC Pin	Switch Travel	0.80mm
Switch Function	Off-Mom	Series	JF
Packaging	Tray	Outline	22.80mm x 17.70mm
Operating Temperature	-25°C ~ 70°C	Operating Force	200gf
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	500,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.7 VDC
Illumination Type, Color	LED, Red	Illumination	Illuminated
Features	Process Sealed	Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Contact Rating @ Voltage	0.05A @ 24VDC	Circuit	SPST-NO
Actuator Type	Square Button	Actuator Orientation	Top Actuated
Actuator Material	Polyamide (PA), Nylon	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	6.78mm
