JL15SKSBFP2

NKK Switches

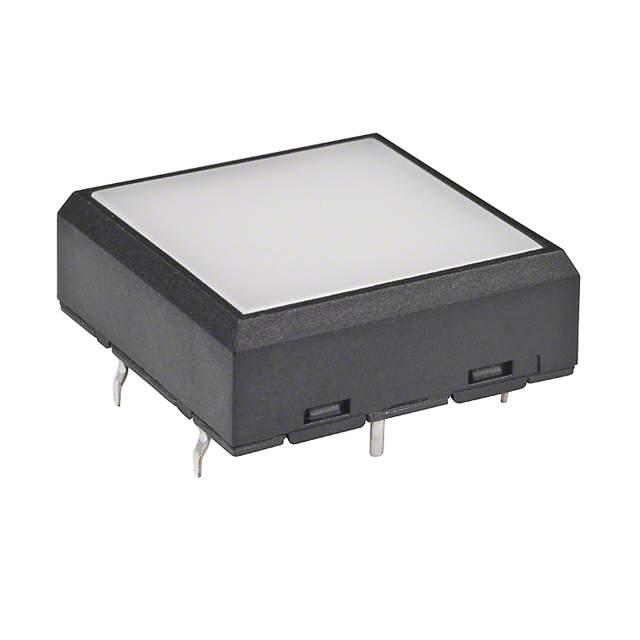

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JL15SKSBFP2
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TACTILE SPST-NO 0.05A 24V
Datasheets:	JL15SKSBFP2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5420 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5420 pcs

Reference Price (In US Dollars)

1 pcs: $6.916

10 pcs: $6.717

25 pcs: $6.322

50 pcs: $5.927

100 pcs: $5.255

250 pcs: $5.137

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.916

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JL15SKSBFP2

Part Number	JL15SKSBFP2	Manufacturer	NKK Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5420 pcs	Data sheet	JL15SKSBFP2.pdf
Termination Style	PC Pin	Switch Travel	0.75mm
Switch Function	Off-Mom	Series	JL
Packaging	Tray	Outline	22.00mm x 22.00mm
Other Names	JL15SKSBFP2-RO JL15SKSBFP2-RO-ND	Operating Temperature	-25°C ~ 50°C
Operating Force	300gf	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	4.2 VDC	Illumination Type, Color	LED, Green
Illumination	Illuminated	Features	-
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole	Contact Rating @ Voltage	0.05A @ 24VDC
Circuit	SPST-NO	Actuator Type	Square Button
Actuator Orientation	Top Actuated	Actuator Material	Polycarbonate (PC)
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	7.85mm
