JPL26B

NKK Switches

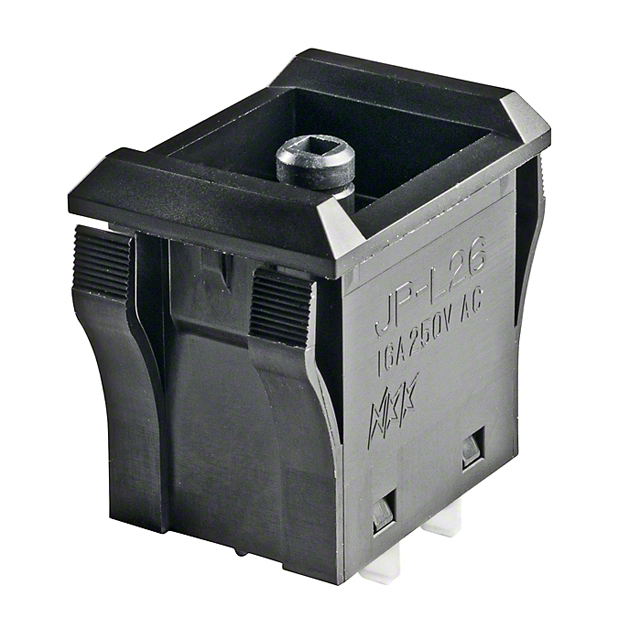

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JPL26B
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSH DPST 16A 125V
Datasheets:	JPL26B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	8477 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 8477 pcs

Reference Price (In US Dollars)

1 pcs: $4.425

10 pcs: $4.093

25 pcs: $3.983

50 pcs: $3.762

100 pcs: $3.651

250 pcs: $3.43

500 pcs: $3.208

1000 pcs: $3.042

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.425

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JPL26B

Part Number	JPL26B	Manufacturer	NKK Switches
Description	SWITCH PUSH DPST 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	8477 pcs	Data sheet	JPL26B.pdf
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Lug	Switch Function	Off-On
Series	JP	Panel Cutout Dimensions	Rectangular - 28.00mm x 21.20mm
Packaging	Bulk	Operating Temperature	-10°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	25,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Tactile Feedback
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch DPST Standard Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	-
Circuit	DPST	Actuator Type	Rectangular, Button
