KB15RKW01-05-JC

NKK Switches

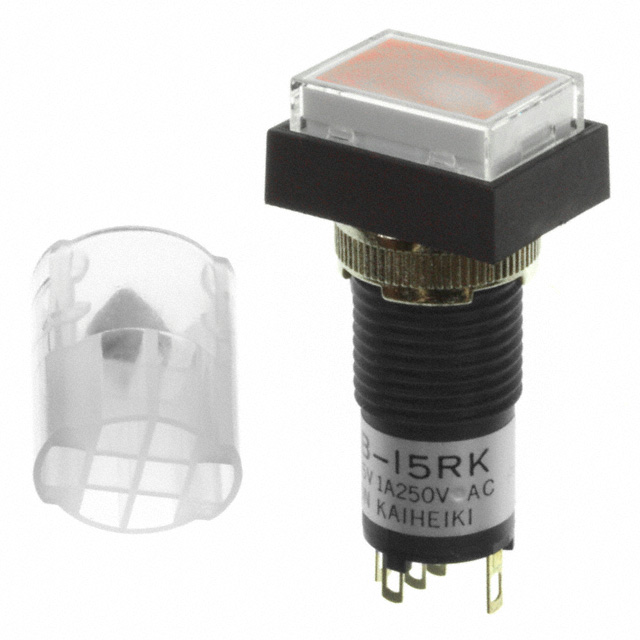

Image may be representation. See specifications for product details.

Product Overview

Part Number:	KB15RKW01-05-JC
Manufacturer/Brand:	NKK Switches
Product description	SWITCH PUSHBUTTON SPDT 1A 125V
Datasheets:	KB15RKW01-05-JC.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10954 pcs

Reference Price (In US Dollars)

1 pcs: $3.133

10 pcs: $2.903

25 pcs: $2.826

50 pcs: $2.75

100 pcs: $2.597

250 pcs: $2.521

500 pcs: $2.368

1000 pcs: $2.139

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.133

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of KB15RKW01-05-JC

Part Number	KB15RKW01-05-JC	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON SPDT 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10954 pcs	Data sheet	KB15RKW01-05-JC.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Type	Standard, Illuminated	Termination Style	Solder Lug
Switch Function	On-Mom	Series	KB
Panel Cutout Dimensions	Circular - 12.30mm Dia	Packaging	Bulk
Other Names	KB15RKW01-05-JC-RO KB15RKW01-05-JC-RO-ND KB15RKW0105JC	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	5 VAC
Illumination Type, Color	Incandescent, Red	Features	-
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Current Rating	1A (AC/DC)	Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Circuit	SPDT	Actuator Type	Rectangular, Button
