M2026BB1W01

NKK Switches

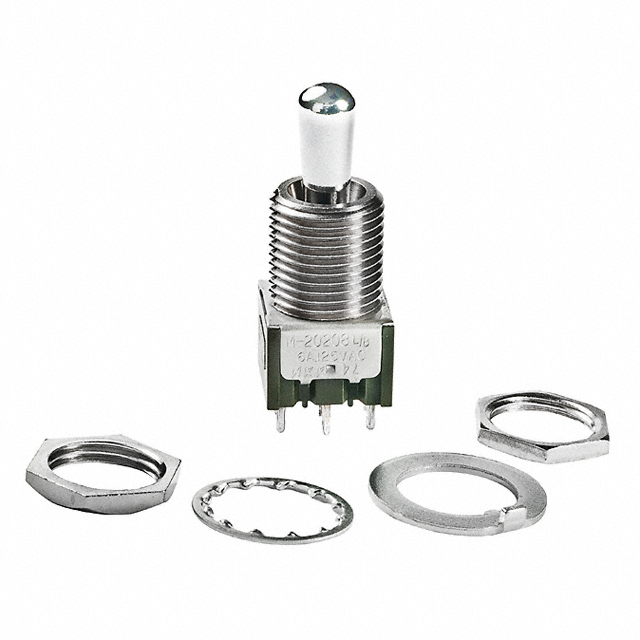

Image may be representation. See specifications for product details.

Product Overview

Part Number:	M2026BB1W01
Manufacturer/Brand:	NKK Switches
Product description	SWITCH TOGGLE SP3T 6A 125V
Datasheets:	M2026BB1W01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10310 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 10310 pcs

Reference Price (In US Dollars)

1 pcs: $2.831

10 pcs: $2.755

25 pcs: $2.681

50 pcs: $2.532

100 pcs: $2.457

250 pcs: $2.383

500 pcs: $2.01

1000 pcs: $1.936

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.831

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of M2026BB1W01

Part Number	M2026BB1W01	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SP3T 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10310 pcs	Data sheet	M2026BB1W01.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	Mom-On-Mom
Series	M	Panel Cutout Dimensions	Circular - 12.50mm Dia
Packaging	Bulk	Other Names	M2026BB1W01-RO M2026BB1W01-RO-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Jumper needed to achieve triple throw	Electrical Life	25,000 Cycles
Detailed Description	Toggle Switch SP3T Panel Mount	Current Rating	6A (AC), 3A (DC)
Circuit	SP3T	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	11.50mm
