MS20ASW13

NKK Switches

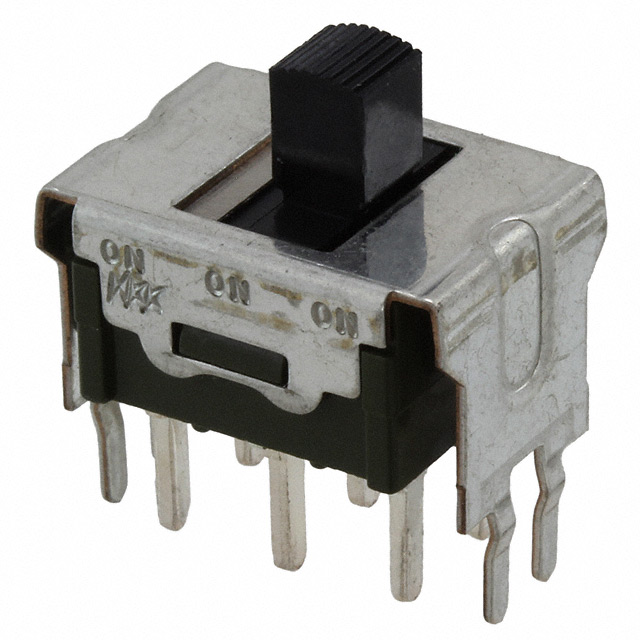

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MS20ASW13
Manufacturer/Brand:	NKK Switches
Product description	SWITCH SLIDE SP3T 6A 125V
Datasheets:	MS20ASW13.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16497 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16497 pcs

Reference Price (In US Dollars)

1 pcs: $2.332

10 pcs: $2.303

25 pcs: $2.275

50 pcs: $2.081

100 pcs: $1.998

250 pcs: $1.887

500 pcs: $1.665

1000 pcs: $1.498

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.332

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MS20ASW13

Part Number	MS20ASW13	Manufacturer	NKK Switches
Description	SWITCH SLIDE SP3T 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16497 pcs	Data sheet	MS20ASW13.pdf
Voltage Rating - AC	125V	Termination Style	PC Pin
Switch Travel	3.50mm	Switch Function	On-On-On
Series	MS	Packaging	Bulk
Other Names	MS20ASW13-RO MS20ASW13-RO-ND	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Jumper needed to achieve triple throw
Electrical Life	25,000 Cycles	Detailed Description	Slide Switch SP3T Through Hole
Current Rating	6A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver Alloy	Contact Finish	Silver
Circuit	SP3T	Actuator Type	Standard
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
