WR13ATN

NKK Switches

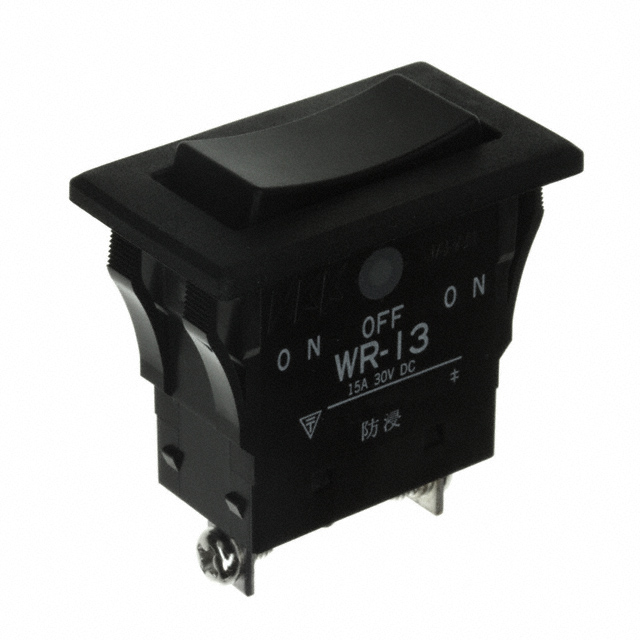

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WR13ATN
Manufacturer/Brand:	NKK Switches
Product description	SWITCH ROCKER SPDT 15A 125V
Datasheets:	WR13ATN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6952 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6952 pcs

Reference Price (In US Dollars)

1 pcs: $4.446

10 pcs: $4.002

25 pcs: $3.891

50 pcs: $3.779

100 pcs: $3.668

250 pcs: $3.557

500 pcs: $3.113

1000 pcs: $2.946

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$4.446

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WR13ATN

Part Number	WR13ATN	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6952 pcs	Data sheet	WR13ATN.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Off-On
Series	WR	Panel Cutout Dimensions	Rectangular - 34.20mm x 17.20mm
Packaging	Bulk	Operating Temperature	-25°C ~ 85°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPDT 15A (AC/DC) 125V Panel Mount, Snap-In
Current Rating	15A (AC/DC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
