14PM-M444U

NMB Technologies Corp.

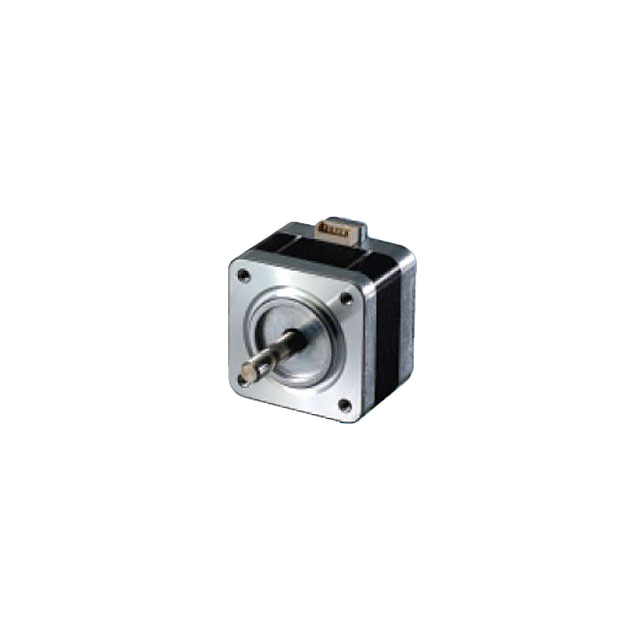

Image may be representation. See specifications for product details.

Product Overview

Part Number:	14PM-M444U
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEP MOTOR HYBRID UNIPOLAR 24V
Datasheets:	1.14PM-M444U.pdf 2.14PM-M444U.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2895 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2895 pcs

Reference Price (In US Dollars)

10 pcs: $12.912

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.912

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 14PM-M444U

Part Number	14PM-M444U	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR HYBRID UNIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2895 pcs	Data sheet	1.14PM-M444U.pdf 2.14PM-M444U.pdf
Weight	0.661 lb (299.82g)	Voltage - Rated	24VDC
Type	Hybrid	Torque - Holding (oz-in / mNm)	26.91 / 190
Termination Style	Connector	Steps per Revolution	200
Step Angle	1.8°	Size / Dimension	Square - 1.378" x 1.378" (35.00mm x 35.00mm)
Series	14PM	Rotor Inertia	32gcm²
Operating Temperature	-	NEMA Frame Size	14
Mounting Hole Spacing	1.023" (26.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.787" (20.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Unipolar Stepper Motor Frame Size 14 200 Step 1A 24VDC	Current Rating	1A
Coil Type	Unipolar	Coil Resistance	4 Ohms
Approvals	-	Accuracy	-
