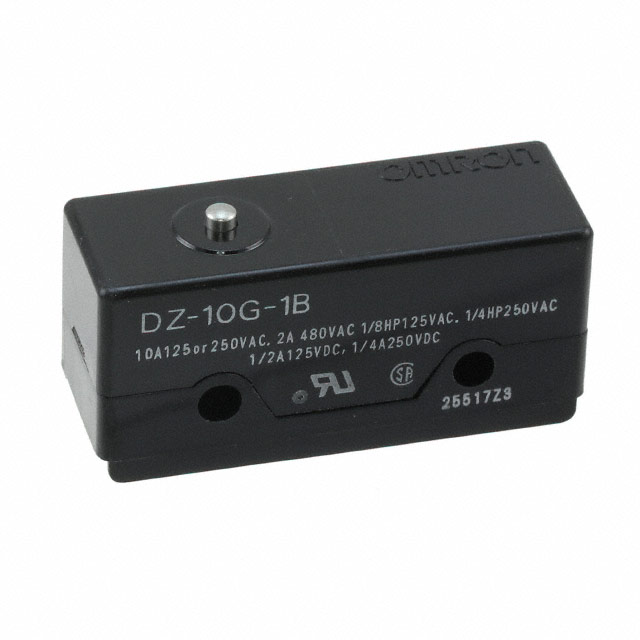

DZ-10G-1B

Omron Automation & Safety

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DZ-10G-1B
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION DPDT 10A 125V
Datasheets:	DZ-10G-1B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2367 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2367 pcs

Reference Price (In US Dollars)

1 pcs: $13.691

10 pcs: $10.267

25 pcs: $9.411

50 pcs: $8.841

100 pcs: $8.271

250 pcs: $7.985

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$13.691

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DZ-10G-1B

Part Number	DZ-10G-1B	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2367 pcs	Data sheet	DZ-10G-1B.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	DZ	Release Force	57gf
Pretravel	0.067" (1.7mm)	Packaging	Bulk
Overtravel	0.005" (0.13mm)	Other Names	DZ-10G-1B-ND DZ10G1B Z7376
Operating Temperature	-25°C ~ 80°C	Operating Position	0.615" (15.6mm)
Operating Force	570gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP00
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.016" (0.4mm)	Current Rating	10A (AC/DC)
Circuit	DPDT	Actuator Type	Round (Pin Plunger)
