Z-15H2-B

Omron Automation & Safety

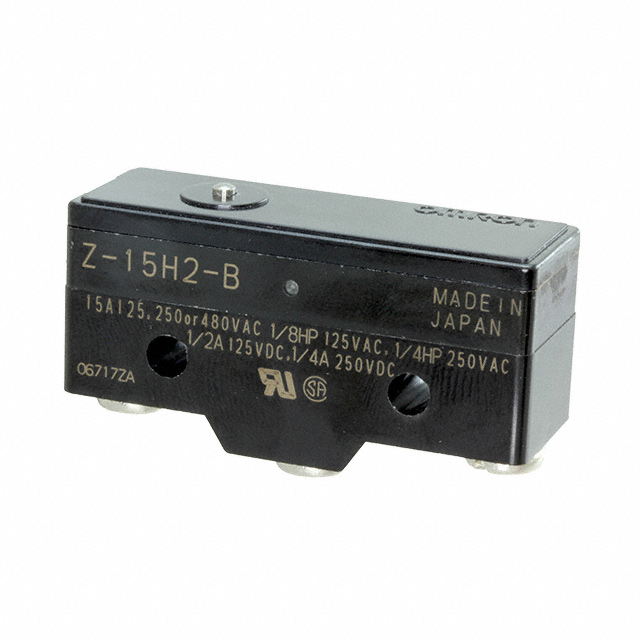

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-15H2-B
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION SPDT 10A 125V
Datasheets:	Z-15H2-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4698 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4698 pcs

Reference Price (In US Dollars)

1 pcs: $7.207

10 pcs: $5.589

25 pcs: $5.295

50 pcs: $5.001

100 pcs: $4.559

250 pcs: $4.265

500 pcs: $4.118

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.207

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-15H2-B

Part Number	Z-15H2-B	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION SPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4698 pcs	Data sheet	Z-15H2-B.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	114gf
Pretravel	0.012" (0.3mm)	Packaging	Bulk
Overtravel	0.005" (0.13mm)	Other Names	Z-15H2-B-ND Z15H2B Z8195
Operating Temperature	-25°C ~ 80°C	Operating Position	0.625" (15.9mm)
Operating Force	200 ~ 255gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP00
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.0003" (0.008mm)	Current Rating	10A (AC), 2A (DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
