Part Number | OD7015-12HHB01A | Manufacturer | Orion Fans |
---|---|---|---|

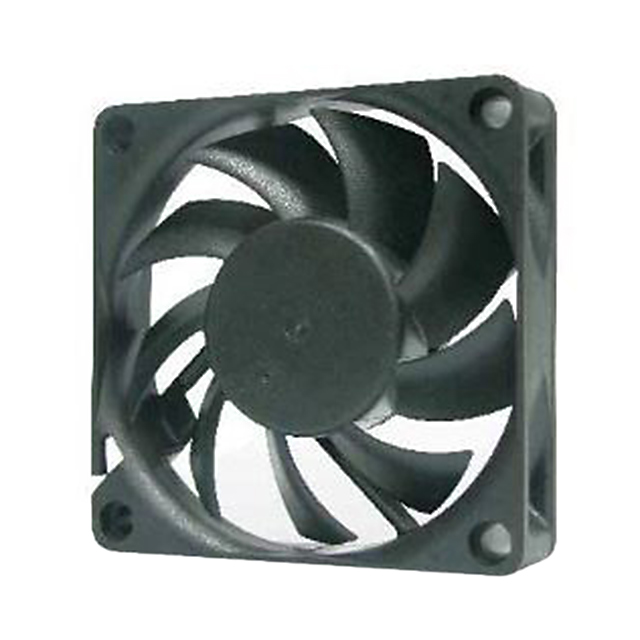

Description | FAN AXIAL 70X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 9534 pcs | Data sheet | 1.OD7015-12HHB01A.pdf2.OD7015-12HHB01A.pdf3.OD7015-12HHB01A.pdf4.OD7015-12HHB01A.pdf |
Width | 15.50mm | Weight | 0.111 lb (50.35g) |
Voltage Range | 7 ~ 13.2VDC | Voltage - Rated | 12VDC |
Termination | 3 Wire Leads | Static Pressure | 0.260 in H2O (64.8 Pa) |
Size / Dimension | Square - 70mm L x 70mm H | Series | OD7015 |
RPM | 5500 RPM | Power (Watts) | 4.32W |
Other Names | 1053-1607 OD7015-12HHB01A-ND OD7015-12HHB01AX OD701512HHB01A |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 44.5 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Lifetime @ Temp. | 70000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Ingress Protection | - | Features | Speed Sensor (Tach) |
Fan Type | Tubeaxial | Current Rating | 0.260A |
Bearing Type | Ball | Approvals | cURus, TUV |
Air Flow | 41.0 CFM (1.15m³/min) |
