ADQ23Q024

Panasonic

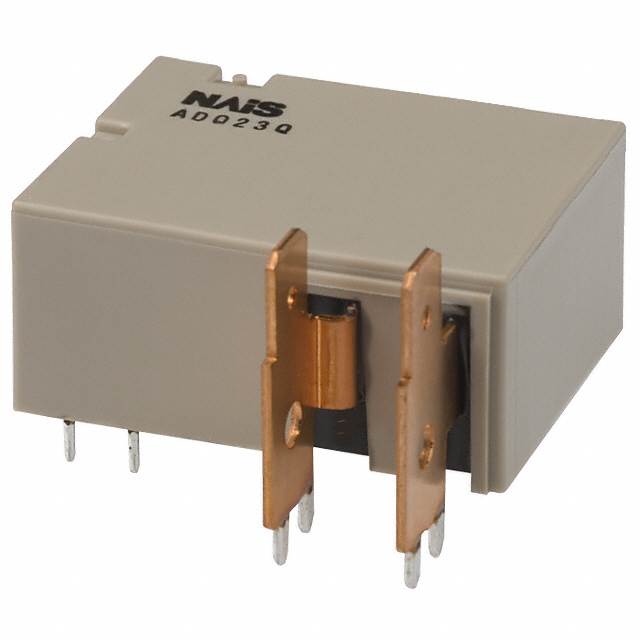

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADQ23Q024
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 30A 24V
Datasheets:	ADQ23Q024.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4388 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4388 pcs

Reference Price (In US Dollars)

1 pcs: $7.453

20 pcs: $6.624

40 pcs: $6.293

60 pcs: $5.962

100 pcs: $5.63

260 pcs: $5.134

500 pcs: $4.802

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$7.453

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADQ23Q024

Part Number	ADQ23Q024	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 30A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4388 pcs	Data sheet	ADQ23Q024.pdf
Turn On Voltage (Max)	16.8 VDC	Turn Off Voltage (Min)	-
Termination Style	PC Pin, Quick Connect - 0.250" (6.3mm)	Switching Voltage	250VAC - Max
Series	ADQ	Release Time	20ms
Relay Type	General Purpose	Packaging	Tube
Other Names	255-1444	Operating Temperature	-40°C ~ 65°C
Operate Time	20ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed - Fully	Detailed Description	General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Contact Rating (Current)	30A	Contact Material	Silver Tin Oxide (AgSnO)
Contact Form	SPST-NO (1 Form A)	Coil Voltage	24VDC
Coil Type	Latching, Dual Coil	Coil Resistance	576 Ohms
Coil Power	1 W	Coil Current	41.7mA
