DB2J31000L

Panasonic

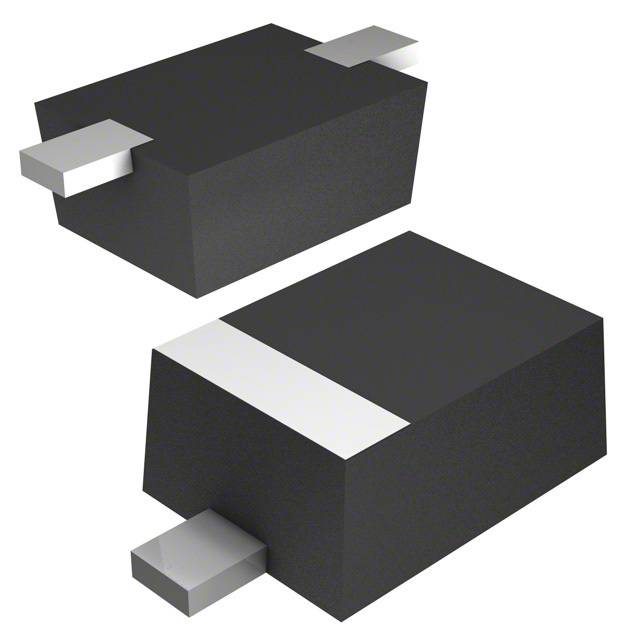

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DB2J31000L
Manufacturer/Brand:	Panasonic
Product description	DIODE SCHOTTKY 30V 200MA SMINI2
Datasheets:	DB2J31000L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1906936 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1906936 pcs

Reference Price (In US Dollars)

3000 pcs: $0.017

6000 pcs: $0.015

15000 pcs: $0.012

30000 pcs: $0.012

75000 pcs: $0.011

150000 pcs: $0.01

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.017

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DB2J31000L

Part Number	DB2J31000L	Manufacturer	Panasonic
Description	DIODE SCHOTTKY 30V 200MA SMINI2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1906936 pcs	Data sheet	DB2J31000L.pdf
Voltage - Forward (Vf) (Max) @ If	470mV @ 200mA	Voltage - DC Reverse (Vr) (Max)	30V
Supplier Device Package	SMini2-F5-B	Speed	Small Signal =< 200mA (Io), Any Speed
Series	-	Reverse Recovery Time (trr)	1.6ns
Packaging	Tape & Reel (TR)	Package / Case	SC-90, SOD-323F
Other Names	DB2J31000LTR	Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 200mA Surface Mount SMini2-F5-B	Current - Reverse Leakage @ Vr	200µA @ 30V
Current - Average Rectified (Io)	200mA	Capacitance @ Vr, F	4.5pF @ 10V, 1MHz
Base Part Number	DB2J310
